LLS-OP-W30B/C



  LLS-OP-W30B
· Structure waterproof ,seamless stitching
· High heat dissipation and anti-corrosion
· Toughened glass with impact resistance
· With extended bracket  for wall installation



  LLS-OP-W30C
· The lamp body adopts the
  hidden line design scheme and has

  a simple appearance

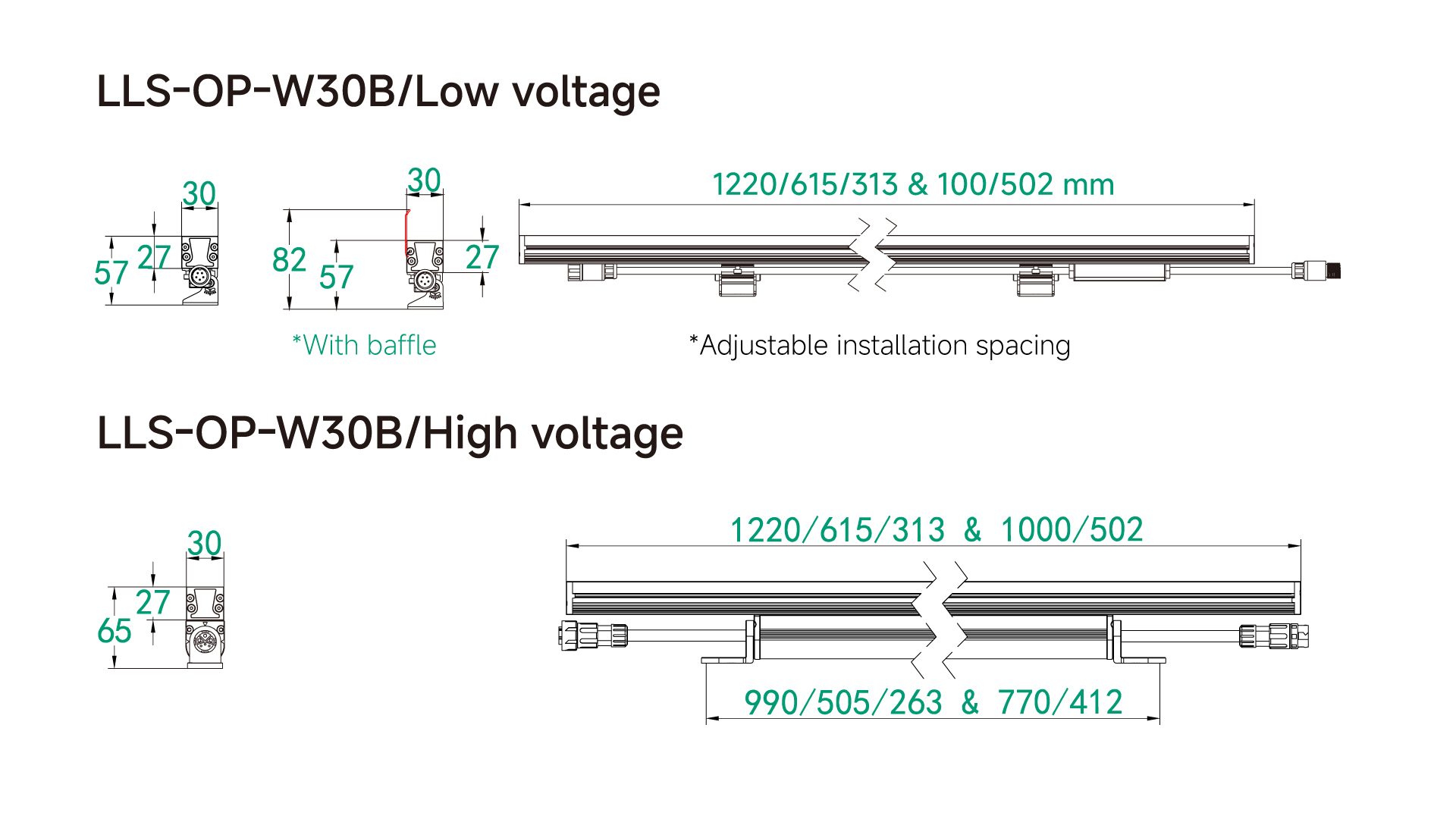

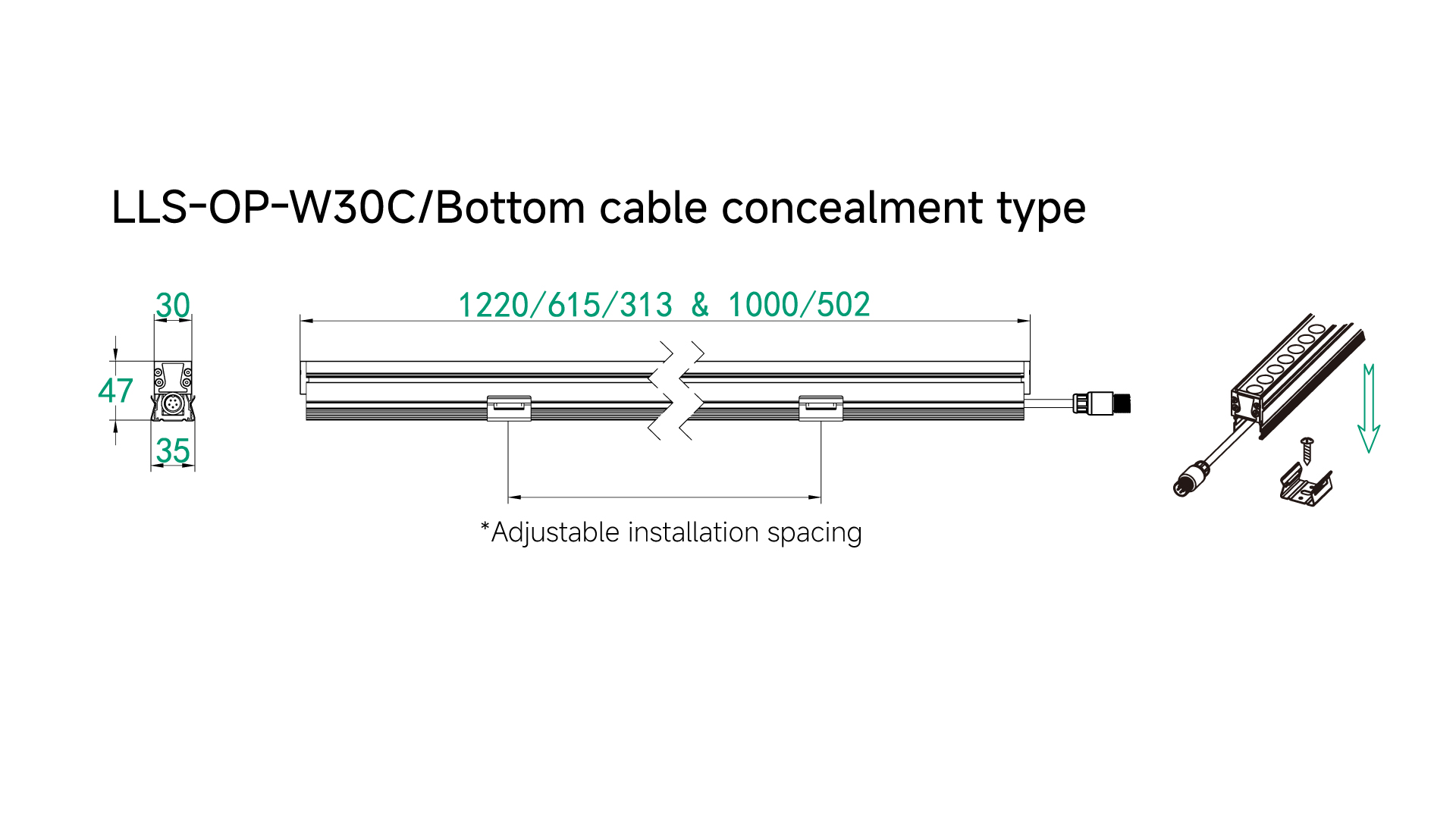

   Product drawing：



   Model Configuration Table：

Model Length Power(Max) Colours Lumen Beam Angle Control Chips Brand Package
LLS-OP-W30B/C-L3 L313mm 6W 2700K/3000K
4000K/6000K		 240lm



monochromatic：
15° /30° /45°
20° x40°


RGBW：
30° /45° /60°
30° x40



 B:
0.32±5%Kg 32 Units/ Ctn 660*32*22.5CM
R+G+B
RGBW		 150lm C:
0.54±5%Kg 32 Units/ Ctn9 660*32*22.5CM
LLS-OP-W30B/C-L6 L615mm 11W 2700K/3000K
4000K/6000K		 440lm B:
0.63±5%Kg 16 Units/ Ctn 660*32*22.5CM
R+G+B
RGBW		 275lm C:
0.71±5%Kg 16 Units/ Ctn 660*32*22.5CM
LLS-OP-W30B/C-L12 L1220mm 21W 2700K/3000K
4000K/6000K		 840lm B:
1.26±5%Kg 16 Units/ Ctn 125.5*32*23CM
R+G+B
RGBW		 520lm C:
1.42±5%Kg16Units/Ctn
125.5*32*22.5CM



Case diagram:
