LWW-PZT-W38A
·Graduated bracket, structural waterproof, |
 |

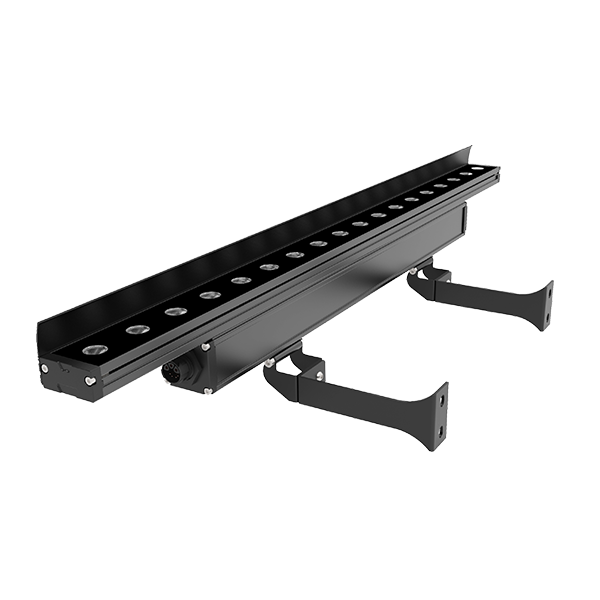

Product Pictures：
 |
 |
|
|
|
|
|
|
Model Configuration Table：
|
Model |
Length |
Power (Max) |
Colours |
Lumen |
Beam Angle |
Control |
Chips Brand |
Package |
|
LWW-PZT-W38A-L3 |
L314mm |
9W |
W/R/G/B RGBW RGB |
360~1170 lm |
15 °/30° 45°/60° 10*45° 15*55° 20*40°
|
|
|
1.1Kg±5% 16 Units/Ctn 71.5*31*32.5CM |
| LWW-PZT-W38A-L5 |
L507mm |
18W |
720~2340 lm |
1.4Kg±5% 12 Units/Ctn 55.5*45.5*32.5CM |
||||
| LWW-PZT-W38A-L6 |
L615mm |
1.6Kg±5% 12 Units/Ctn 66.5*45.5*32.5CM |
||||||
| LWW-PZT-W38A-L10 |
L1002mm |
36W |
1440~4680 lm |
2.2Kg±5% 8 Units/Ctn 105.5*31*32.5CM |
||||
| LWW-PZT-W38A-L12 |
L1218mm |
2.5Kg±5% 8 Units/Ctn 127*31*32.5CM |
Case Diagram:
 |
 |
Download：
| → Manual | |
|
→ Test -falling test -PH test -fading test
|
|
