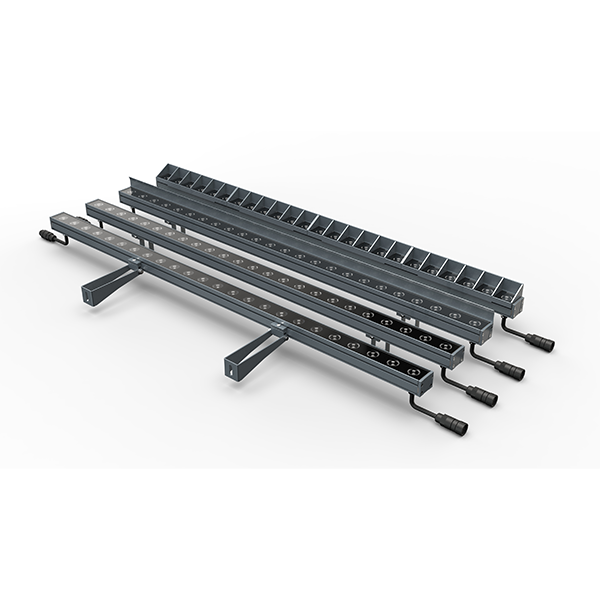

LWW-DMH-W80



·Structural waterproof
·Easy to maintain
·Multiple control mode
·With a display board



   Product drawing：



   Model Configuration Table:

Model Length Power(Max) Colours Lumen Beam Angle Control Chips Brand Package
LWW-DMH
-W80-L3		 L305mm 12W 2700K/3000K
4000K/5700K		 840lm

15°/30°/45°


60°/20x40°


15x55°

 2.1±5%Kg
8 Units/Ctn
75*30*37CM
R+G+B
RGBW		 400lm
500lm
LWW-DMH
-W80-L5		 L575mm 20W 2700K/3000K
4000K/5700K		 1500lm 3.5±5%Kg
4 Units/Ctn
65*30*37CM
R+G+B
RGBW		 700lm
900lm
LWW-DMH
-W80-L6		 L610mm 20W 2700K/3000K
4000K/5700K		 1500lm 3.6±5%Kg
4 Units/Ctn
70*30*37CM
R+G+B
RGBW		 700lm
900lm
LWW-DMH
-W80-L10		 L1115mm 40W 2700K/3000K
4000K/5700K		 2920lm 5.3±5%Kg
4 Units/Ctn
120*30*37CM
R+G+B
RGBW		 1400lm
1700lm
LWW-DMH
-W80-L12		 L1220mm 40W 2700K/3000K
4000K/5700K		 2920lm 5.6±5%Kg
4 Units/Ctn
130*30*37CM
R+G+B
RGBW		 1400lm
1700lm



   Case diagram：



   Download：

  Product specification   catalogue  IES
