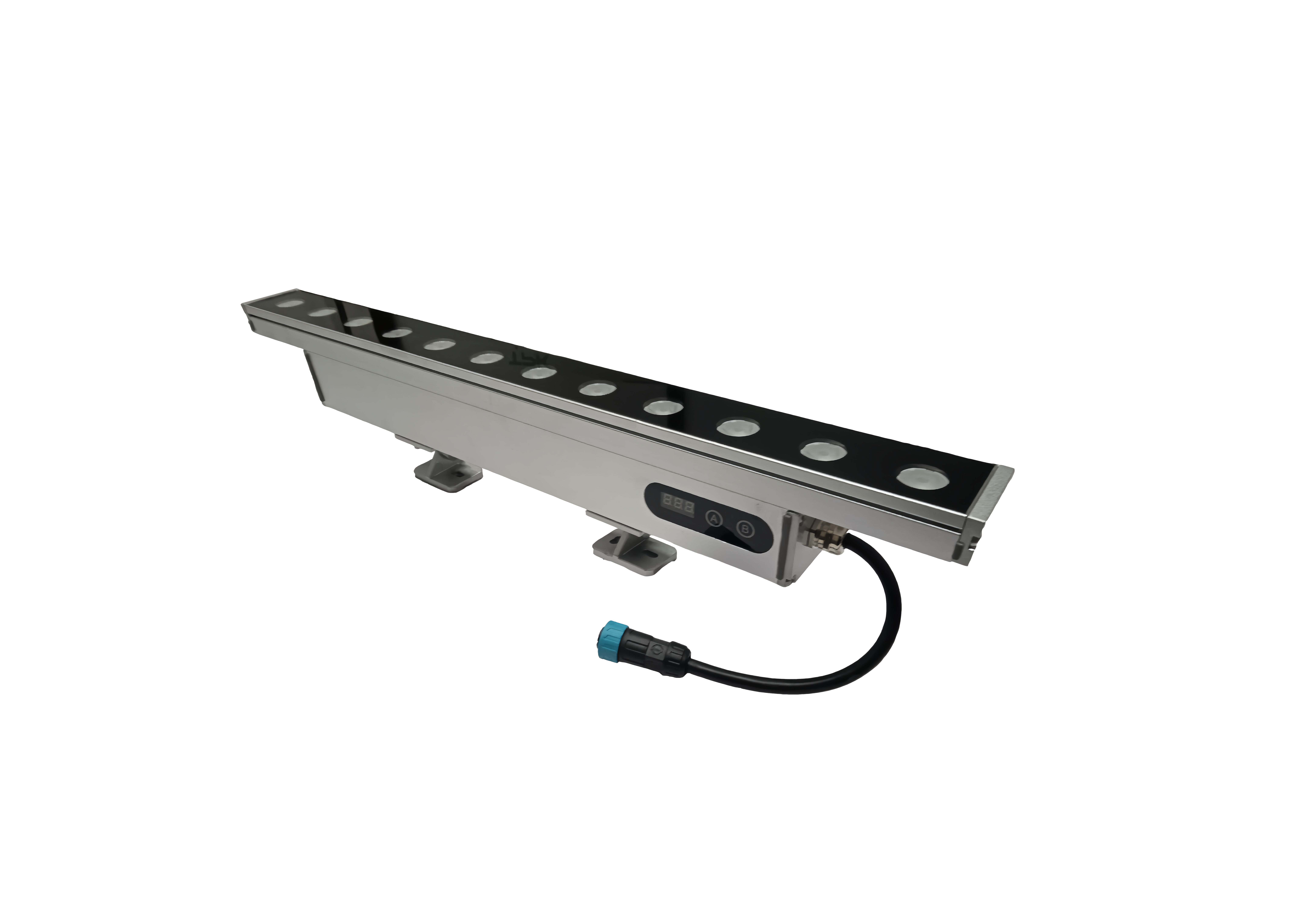

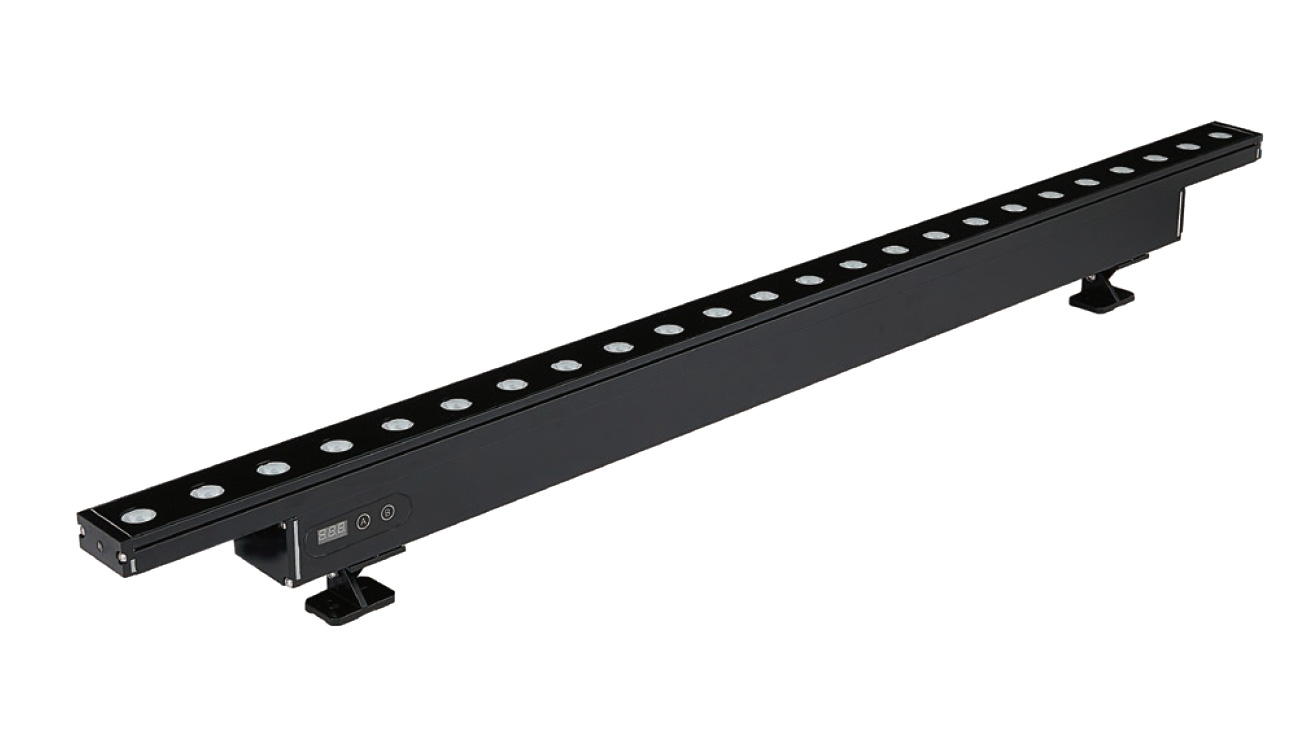

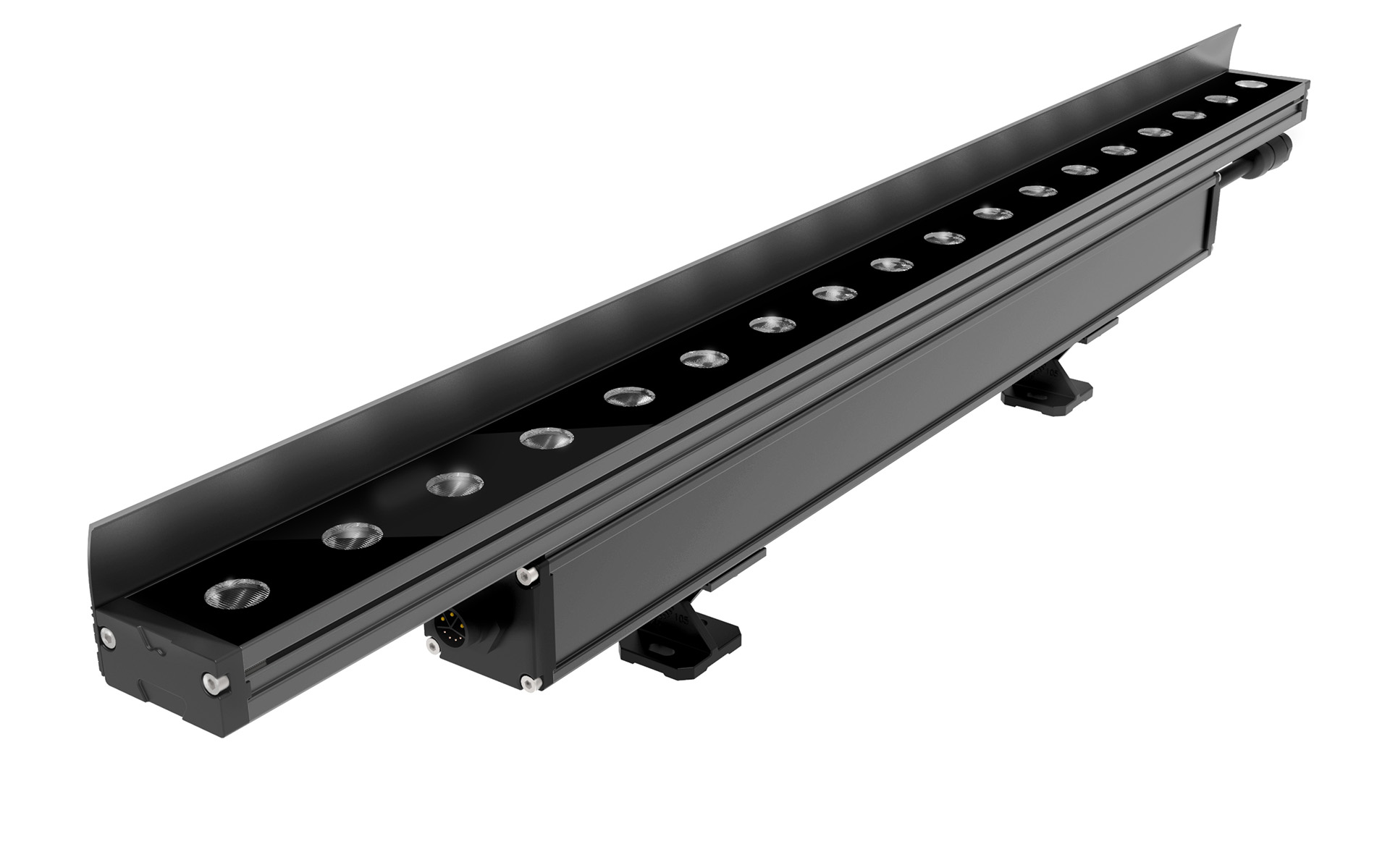

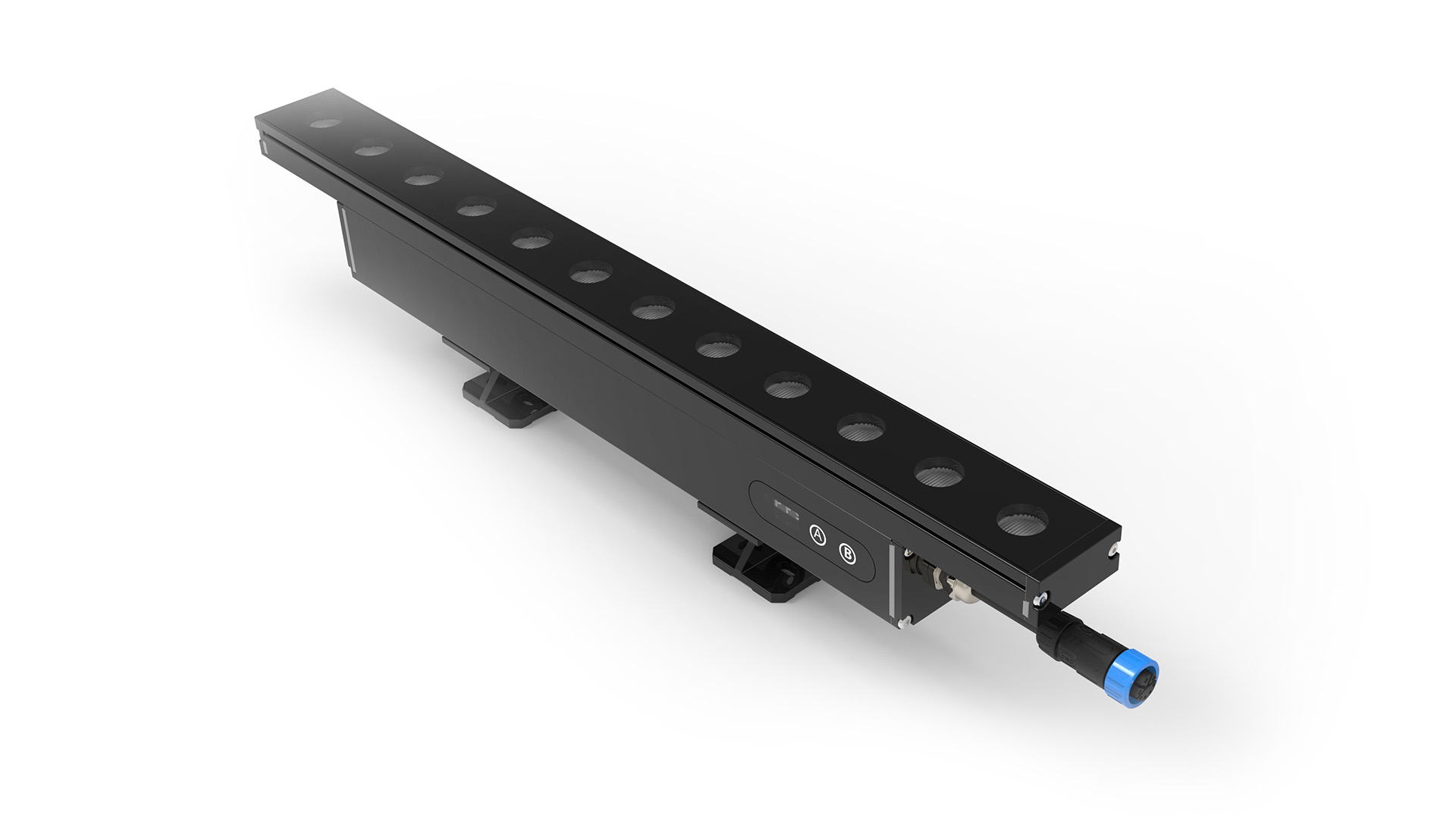

LED Wall Washer
Model：LWW-EU-W55

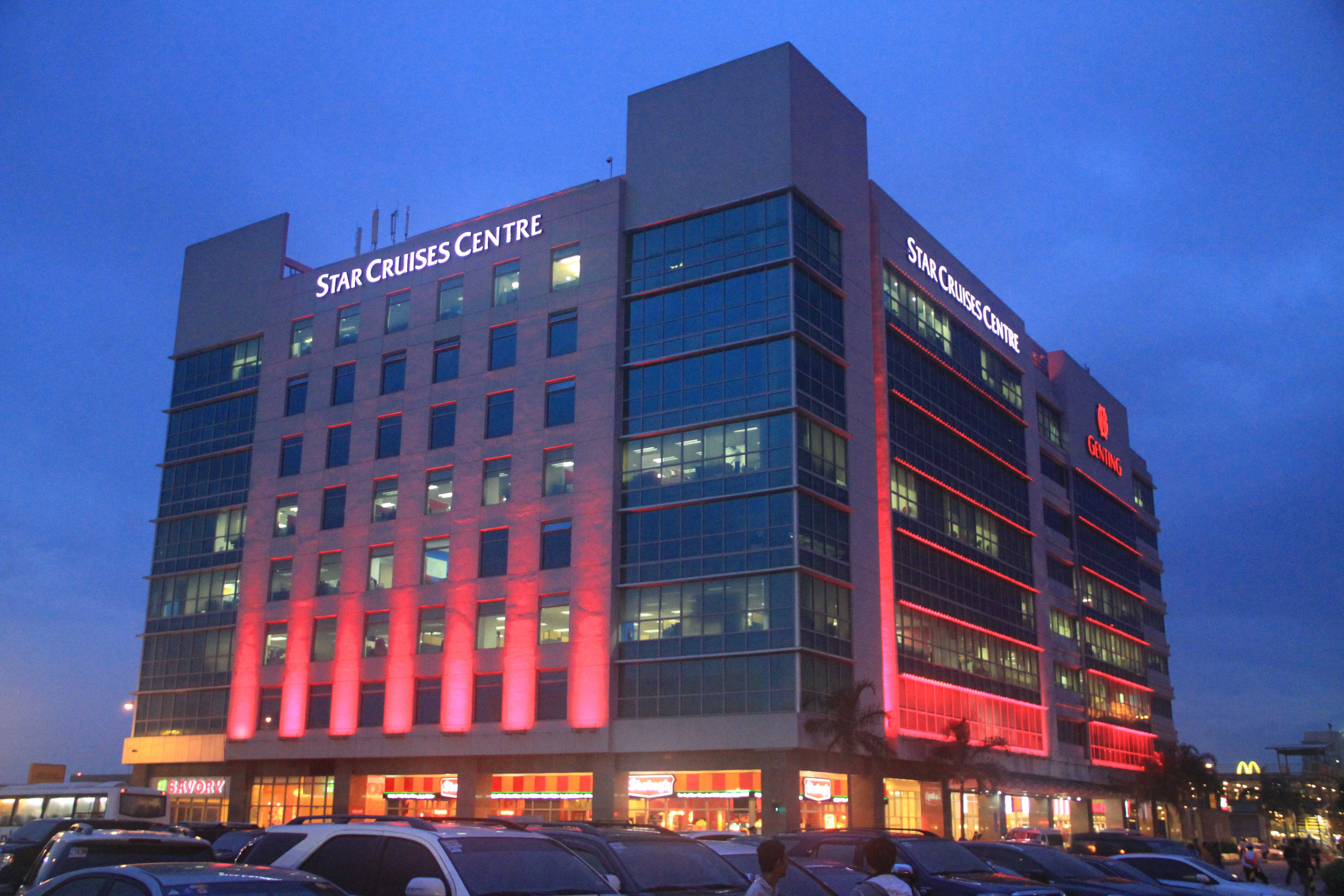

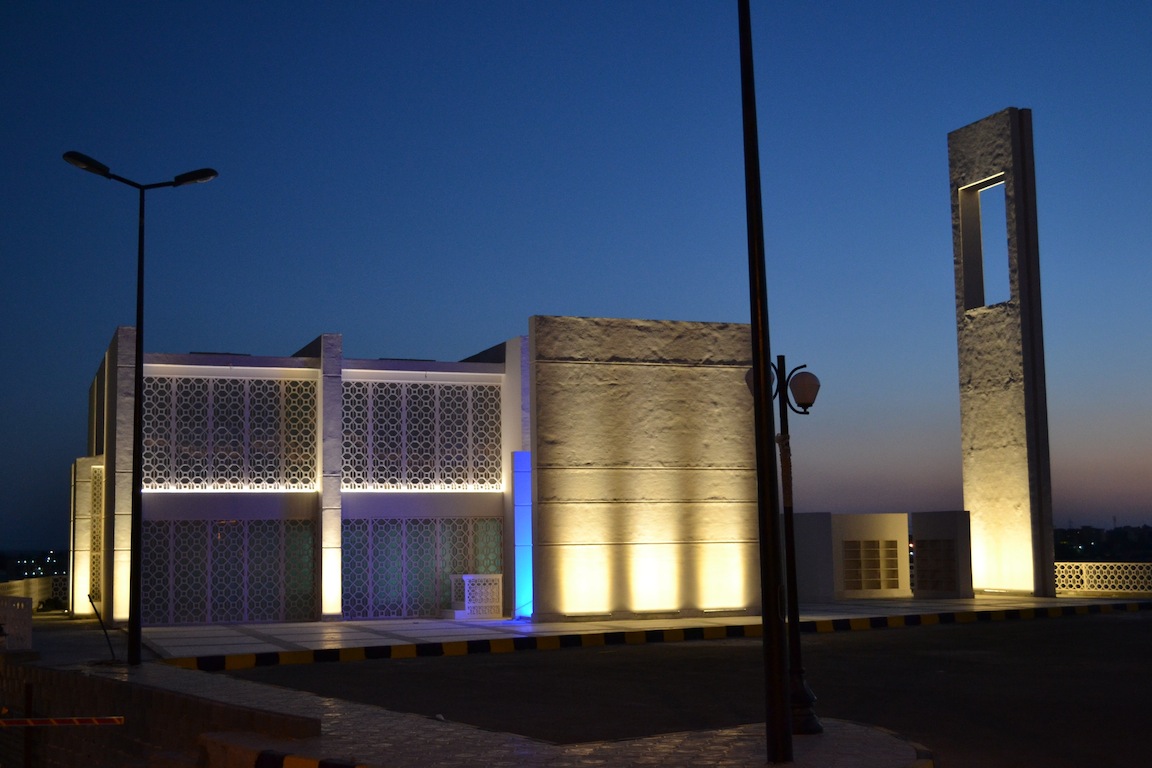

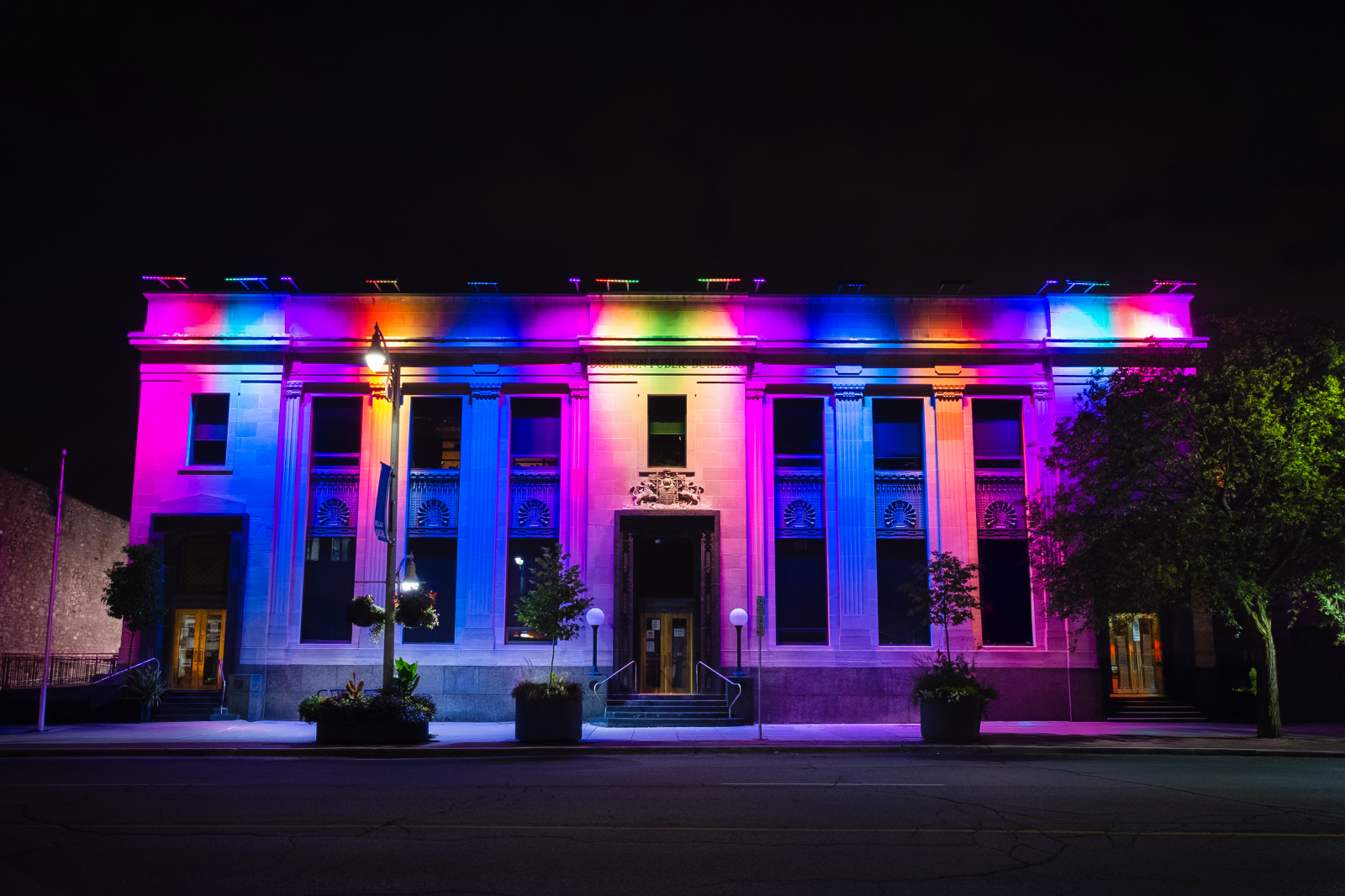

The EU-W55 is a luminaire with IP66 ingress protection rating, ideal for illuminating landscapes, trees, columns, monuments, and architectural details. It offers a wide range of options, including an RF remote control for its operating modes, optical components for floodlighting or accent lighting, as well as multiple choices of color temperatures and color schemes
- Available in 3000K / 4000K / RGBW color temperatures
- 90+ color rendering index
- Lumen output up to 680Lm per foot
- 20° × 45° beam pattern
- Cuttable every 12" with 7.875ft max run
- Fully encased IP67 rating suitable for outdoor use
- UL Listed for indoor and outdoor use
- 50,000 hours rated life
2200K
2700K
3000K
3500K
4000K
6500K
RGB
RGBW
15×55°
20°
25°
35°
40°
45°
60°
30×50°
| Model | Length | Power(Max) | Colours Lumen | Package |
|---|---|---|---|---|
| LWW-WZB-W55-L3 | L350mm | 18W |
2700K3000K 1620lm
4000K5700K 680lm
RGBW 854lm
|
1.2±5%Kg 24Units/Ctn 97*33.5*32CM |
| LWW-WZB-W55-L6 | L620mm | 35W |
2700K3000K 3150lm
4000K5700K 1330lm
RGBW 1645lm
|
2.2±5%Kg 16 Units/Ctn 127.5*33.5*32CM |
| LWW-WZB-W55-L10 | L1015mm | 55W |
2700K3000K 4950lm
R+G+B 2090lm
RGBW 2585lm
|
3±5%Kg 8 Units/Ctn 107*33.5*32CM |
| LWW-WZB-W55-L12 | L1220mm | 65W |
2700K3000K 5850lm
RGBW 3055lm
|
3.8±5%Kg 8Units/Ctn 127.5*33.5*32CM |
Advantages
The Right Amount of Light
High brightness, low energy consumption, to meet large area lighting needs.
Optics and Distributions for All Occasions
Narrow Spot 15°, Medium 25°, Flood 30°, Narrow Flood 35°, Wide Flood 45°, 60°, Very Wide Flood 60°, Asymmetric 15*55° and 30*50°

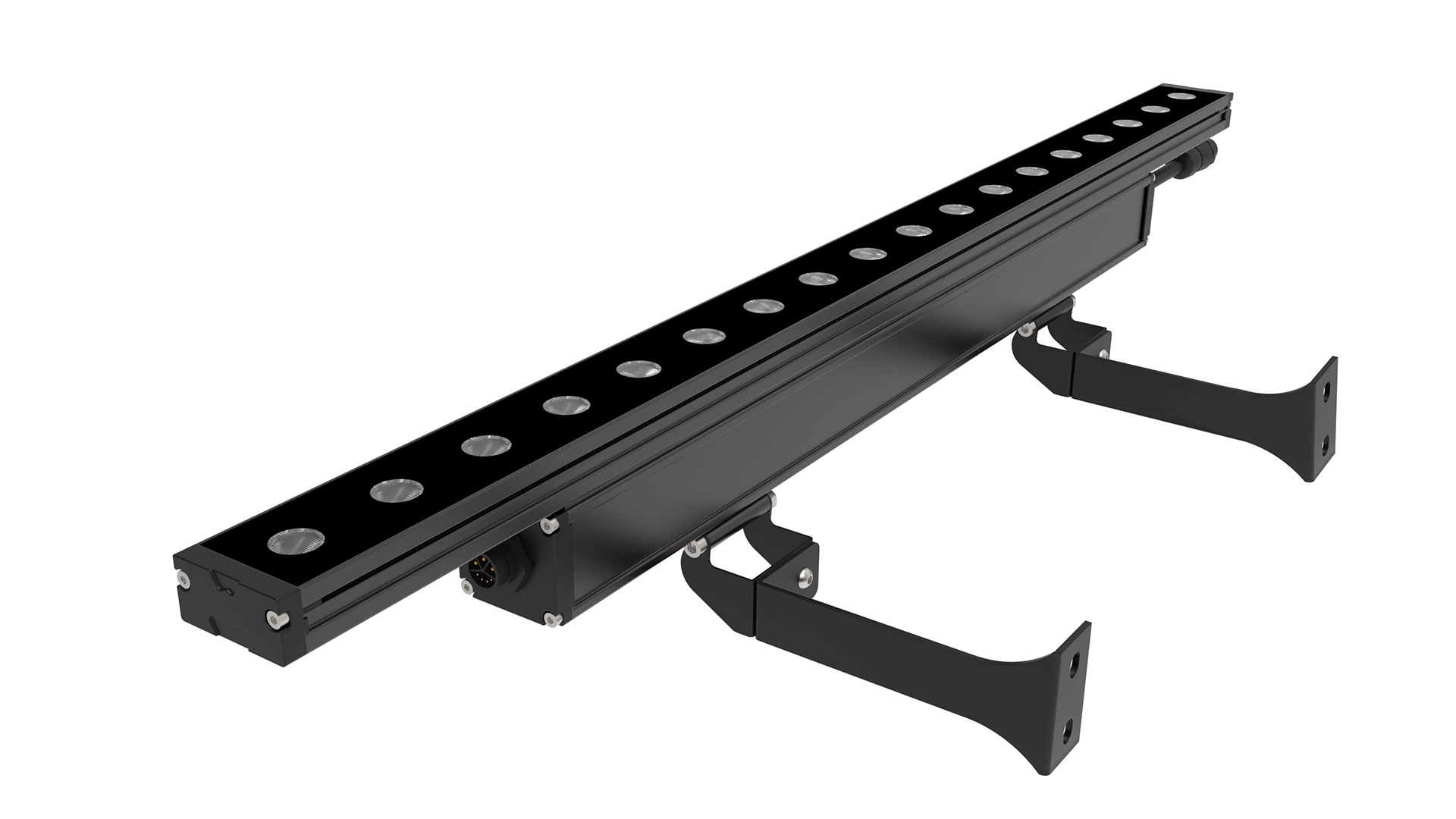

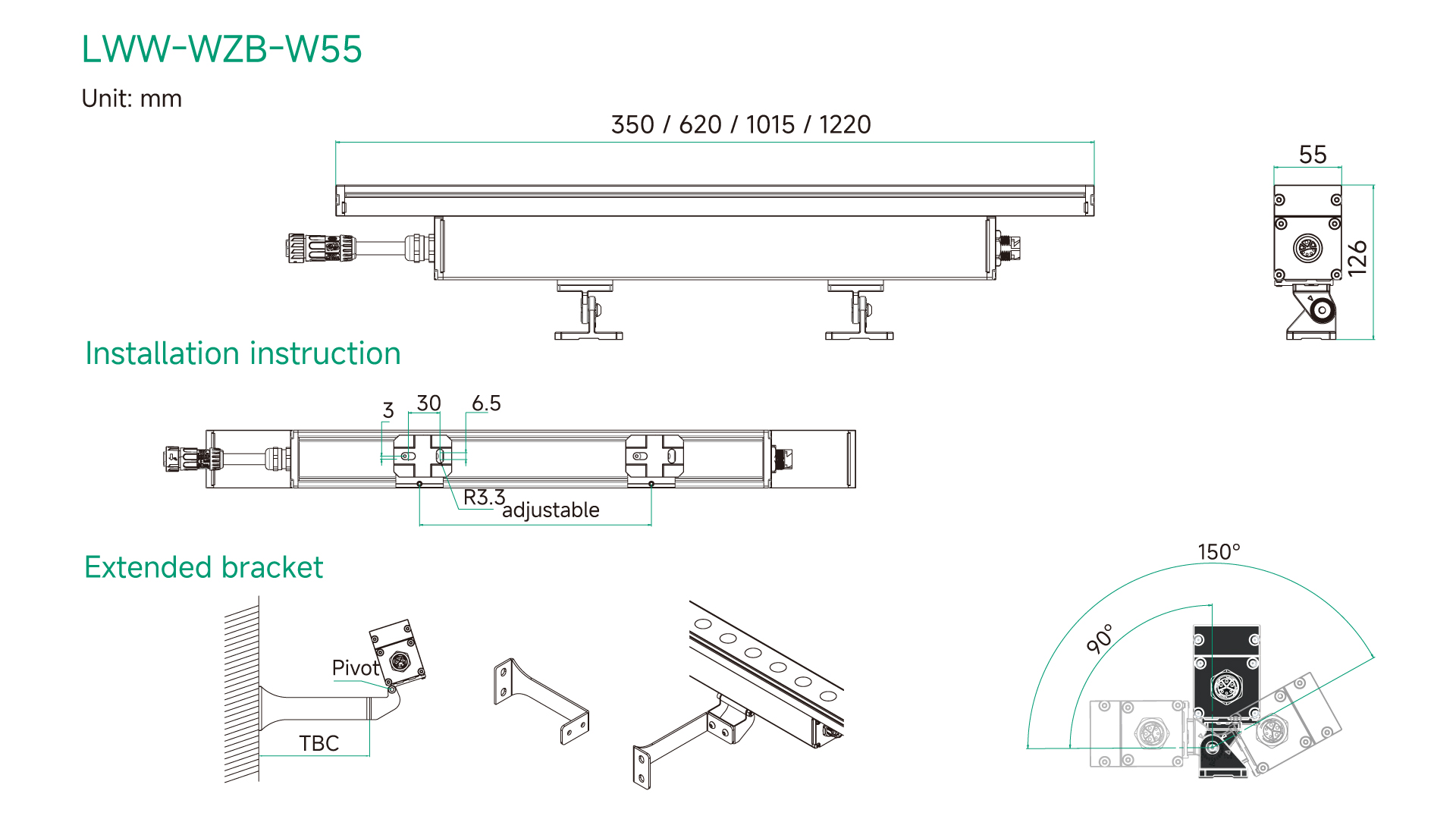

Flexible installation structure
support multi-angle adjustment, easyto accurately illuminate the target area.
Sturdy Construction
High quality aluminum heat dissipation design, good corrosion resistance and ensure long-term use of temperature control,effectively extend the LED service life.
Control Flexibility
Go the distance and use your favourlite control protocols, including DMX/RDM,and remote control
3-Year Warranty
Standard 3-year warranty for completeassembly.
