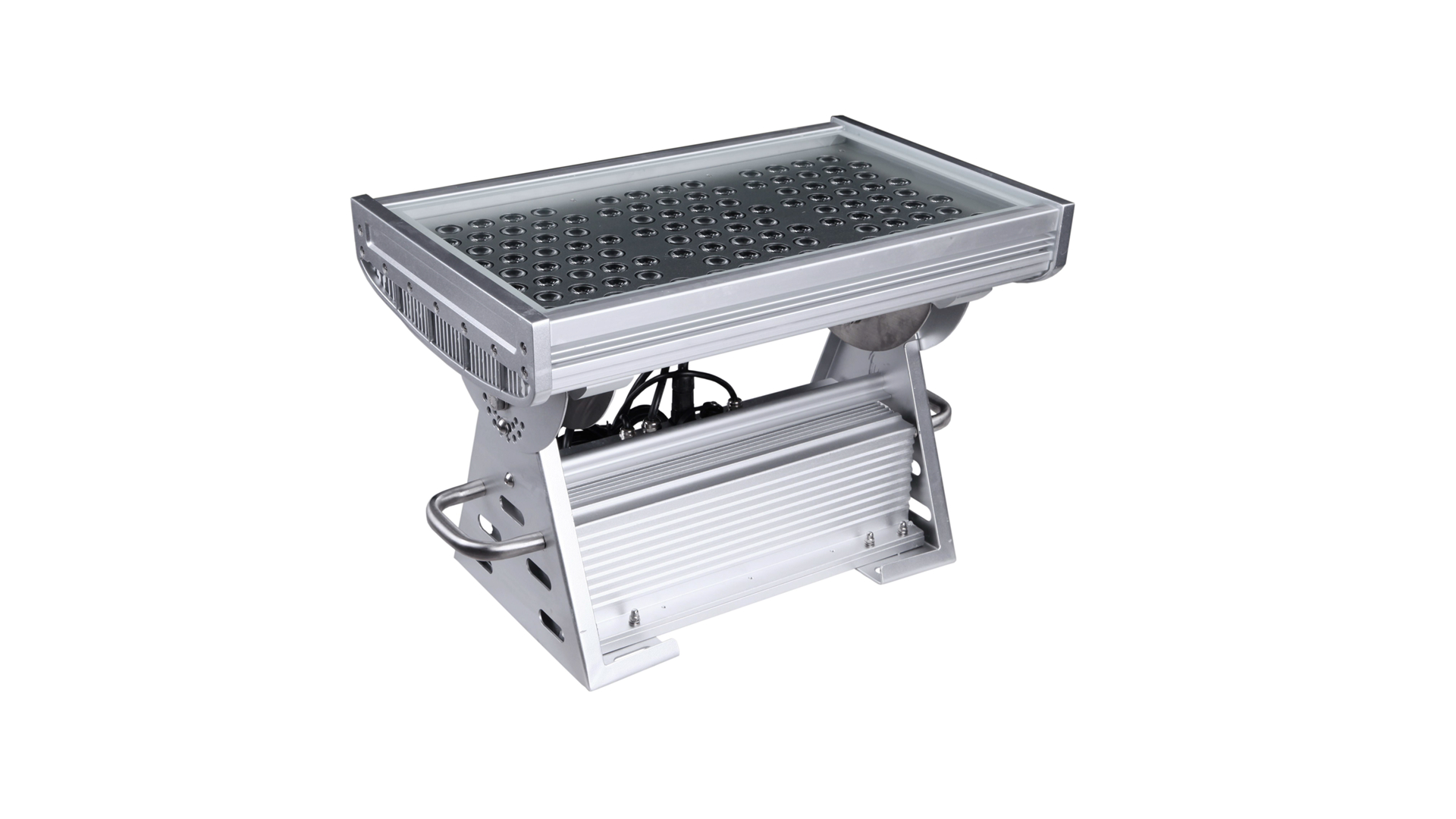

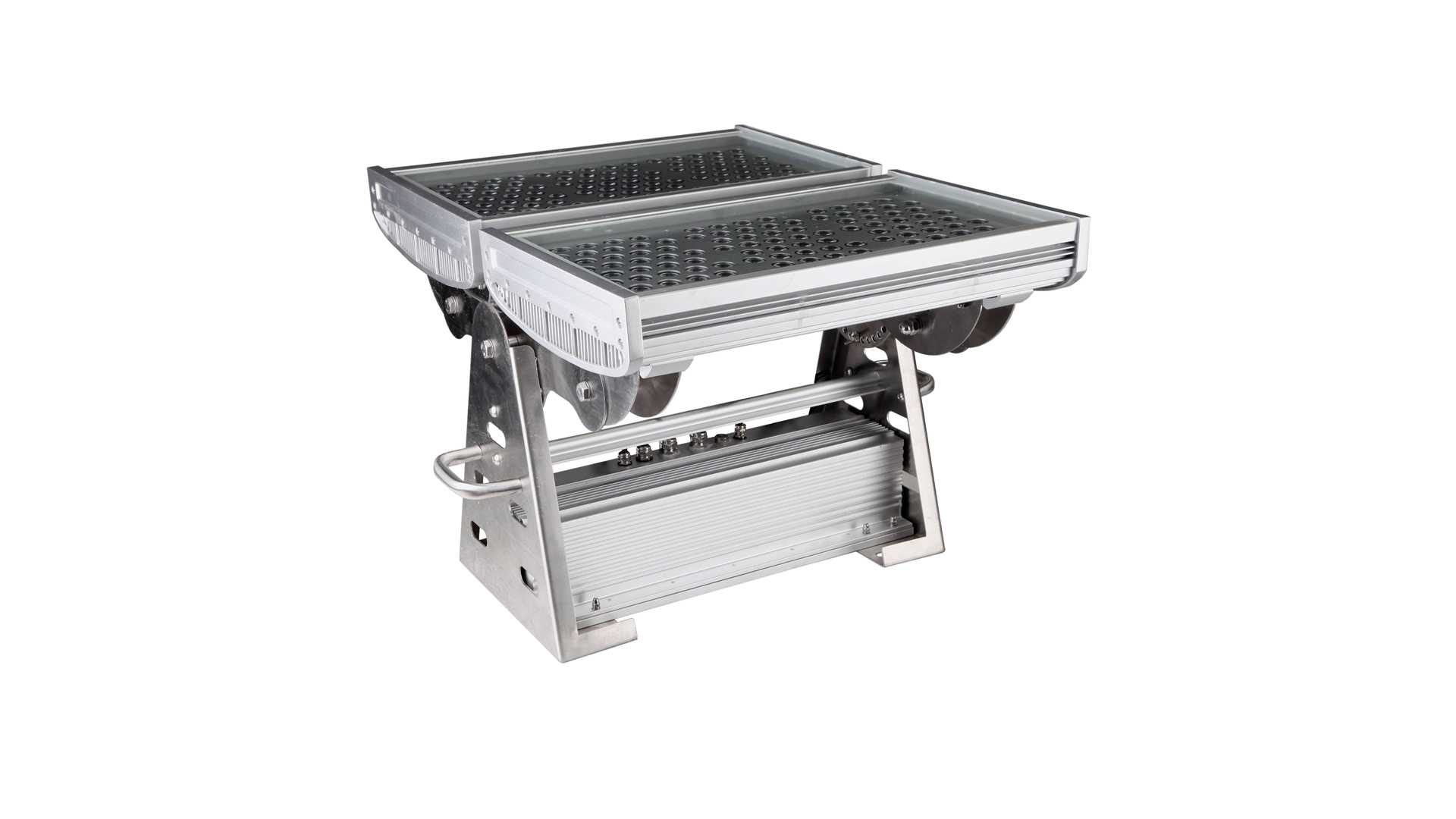

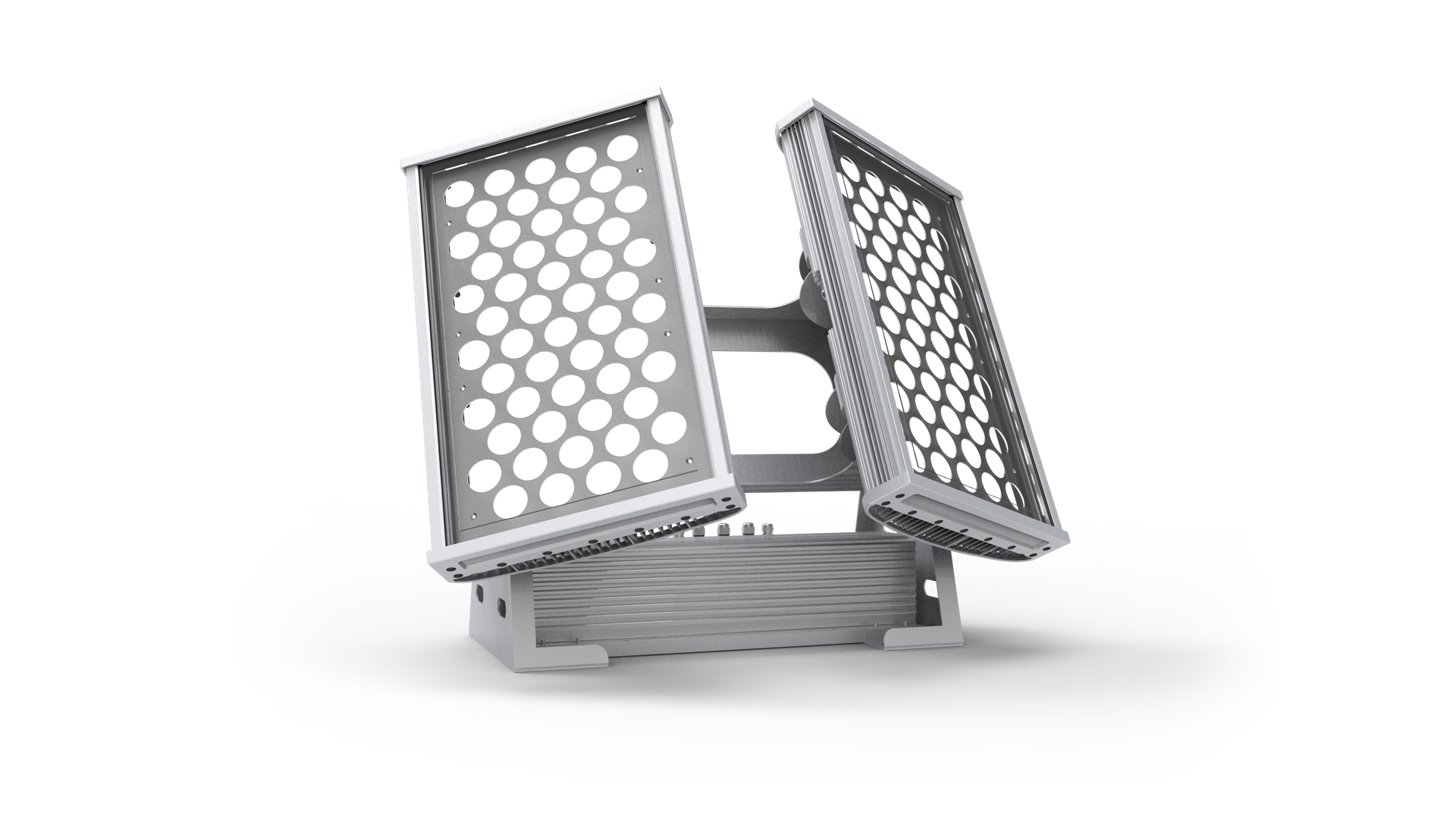

SP-F620A
·New narrow beam angle 8° for option, RGBW
mode has good mixing effect;
·Double lighting heads and double beam angles
design, suit to different building height;
·High voltage input, DMX512/RDM control;
·Datachable bracket for easy installation;
·IP65-IP66; Structural waterproof;
|
|

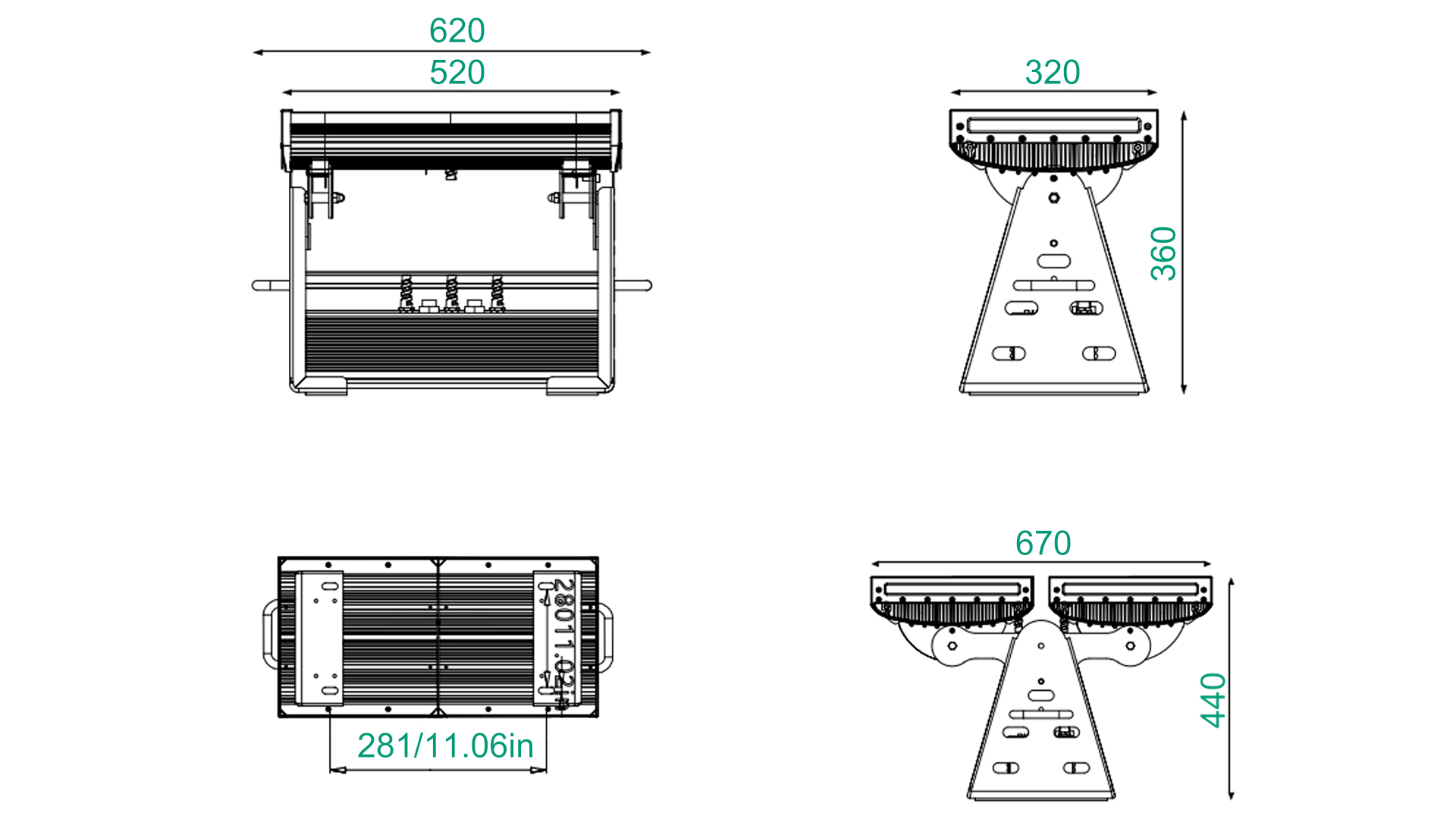

Product drawing：
 |
|
|
|
|
|
|
|
Model Configuration Table：
|
Model |
Length |
Power(Max) |
Colours |
Lumen |
Beam Angle |
Control |
Chips Brand |
Package |
|
SP-F620A -72P |
L320mm |
216W |
RGBW |
11475lm |
15°/30°/45° |
|
|
25.5±5%Kg 1 Units/Ctn 59.5*35.5*40CM |
|
SP-F620A-108P |
L320mm |
216W |
2700K/3000K 4000K/6000K |
12500lm 13500lm |
25.5±5%Kg 1 Units/Ctn 59.5*35.5*40CM |
|||
|
R+G+B |
7960lm |
|||||||
|
SP-F620A-144P |
L670mm |
430W |
RGBW |
14000lm |
42.5±5%Kg 1 Units/Ctn 70.5*69*50CM |
|||
|
SP-F620A-216P |
L670mm |
430W |
2700K/3000K 4000K/6000K |
15316lm 17000lm |
42.5±5%Kg 1 Units/Ctn 70.5*69*50CM |
|||
|
R+G+B |
11475lm |
|||||||
|
SP-F620A-54P |
L320mm |
216W |
RGBW |
5100lm |
8°/10°/12° 20°/24°/36° 60°/10°*30° |
42.5±5%Kg |
||
|
SP-F620A-108P |
L670mm |
430W |
RGBW |
13000lm |

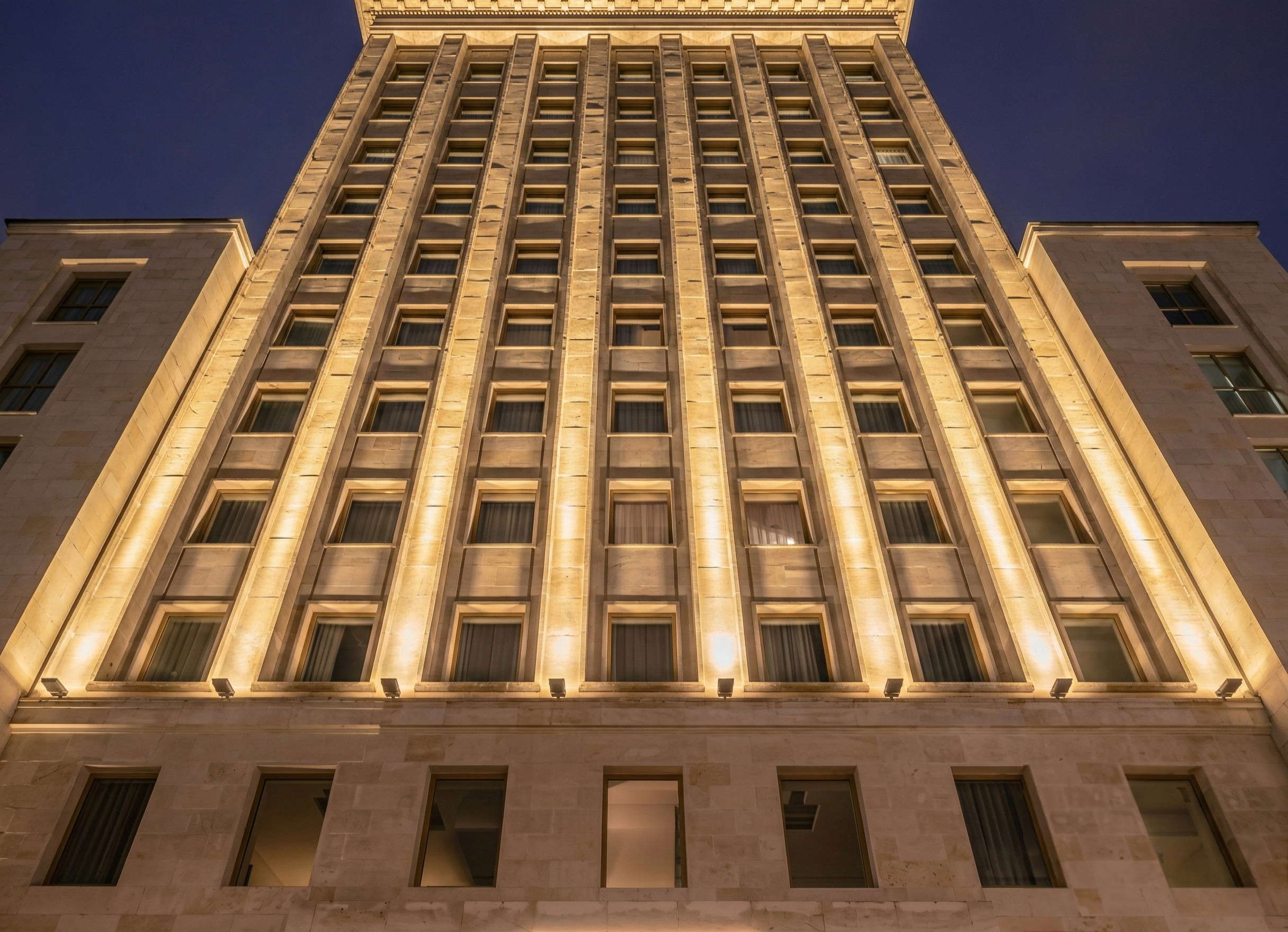

Case diagram:
