Outdoor Architectural
LED LINEAR STRIP
LLS-OP-W100
17W/34W IP65 LED Linear Strip — CE Certified

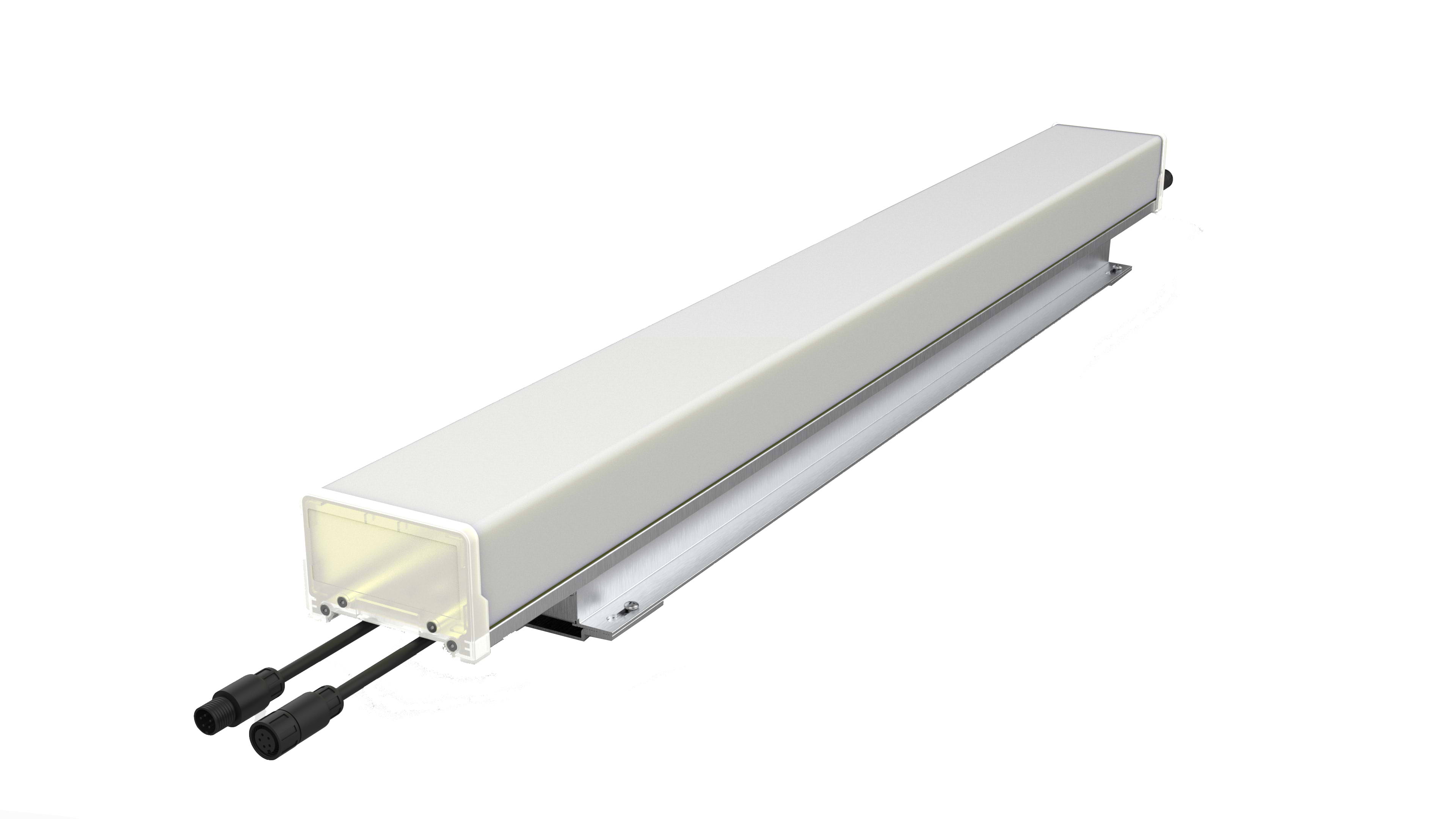

The LLS-OP-W100 is a 17W/34W IP65-rated LED linear strip specifically designed for permanent outdoor architectural lighting projects, including advertisement backgrounds, bridge illumination, and building frames.
CE certified for the European market and crafted with anti-UV materials, it delivers splendid rainbow effects and vibrant color mixing. Available in Static White, RGB, and RGBW with advanced RDM/DMX or DALI control capabilities, it features a 150° ultra-wide beam angle and comes in 0.5m and 1m length options for seamless continuous runs.
Color and Optic
2200K
2700K
3000K
3500K
4000K
6500K
RGB
RGBW
150°
Technical parameters
Model Configuration Table:
| Model | Length | Power | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LLS-OP W100-L5 |
L500mm | 17W |
2700K3000K
4000K6000K
|
680lm | Weight: 1.35±5%Kg Qty/Ctn: 18 pcs Carton: 103.5*41.5*37cm |
| 17W |
RGB
RGBW |
425lm | |||
| LLS-OP W100-L10 |
L1000mm | 34W |
2700K3000K
4000K6000K
|
1360lm | Weight: 2.76±5%Kg Qty/Ctn: 9 pcs Carton: 103.5*41.5*37cm |
| 34W |
RGB
RGBW |
850lm | |||
Why Specify LLS-OP-W100
The Right Amount of Light
High brightness paired with low energy consumption, perfectly meeting the lighting needs of large dynamic outdoor areas.
Structural Waterproofing
Built with an advanced structural waterproof design (IP65) that robustly safeguards internal components for long-term reliability.
High-Quality Diffusion Material
Crafted with double-extrusion technology, this high-quality PC diffuser delivers reliable anti-UV and anti-yellowing performance.
Ultra-Wide 150° Illumination
Designed to emit brilliant light from three distinct sides, maximizing the luminous area with a brightness width of up to 10cm.
Seamless Connection Design
The ultra-thin end cover design enables seamless connection between linear fixtures for a continuous, gap-free architectural appearance.
3-Year Warranty
Backed by a standard 3-year warranty for the complete assembly, ensuring peace of mind for your project investments.
Application Scenarios
Building Facade Lighting
Ideal for vertical wall washing and emphasizing commercial building frames, hotel exteriors, and large-scale architectural facades.
Bridge and Infrastructure Lighting
Perfect for bridge structures, overpasses, and guardrail lighting, delivering seamless continuous illumination with high weather resistance.
Hotel and Retail Exterior Lighting
Enhances luxury hospitality and retail exteriors with vibrant dynamic colors or elegant warm white static illumination.
Landscape and River Bank Lighting
Brings waterfront blocks, public squares, and urban landscape corridors to life with reliable IP65 waterproof performance.
The LLS-OP-W100 is designed for permanent outdoor architectural lighting projects where wide-angle illumination, dynamic color effects, weather resistance, and seamless continuous runs are required.
Impressions
Downloads
Related Projects
LLS-OP-W100 | Technical FAQ
What is the IP rating of the LLS-OP-W100?
Is the LLS-OP-W100 CE certified for projects in Europe?
What control systems are compatible with the LLS-OP-W100?
What beam angles are available, and how do I choose the right one?
What lengths and wattages does the LLS-OP-W100 come in?
What warranty does the LLS-OP-W100 carry?
Accessories
End cap
Signal input cable
Adapter cable
Y-type cable
End cap
