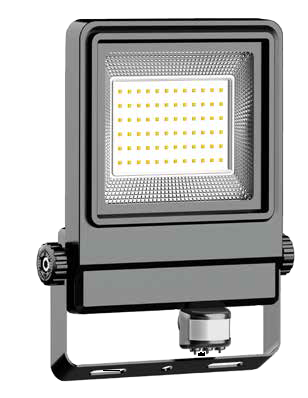

YXYDF2
Flood light
|
|
|||
|
3CCT Adjustable |
Optional sensor model |
||
|

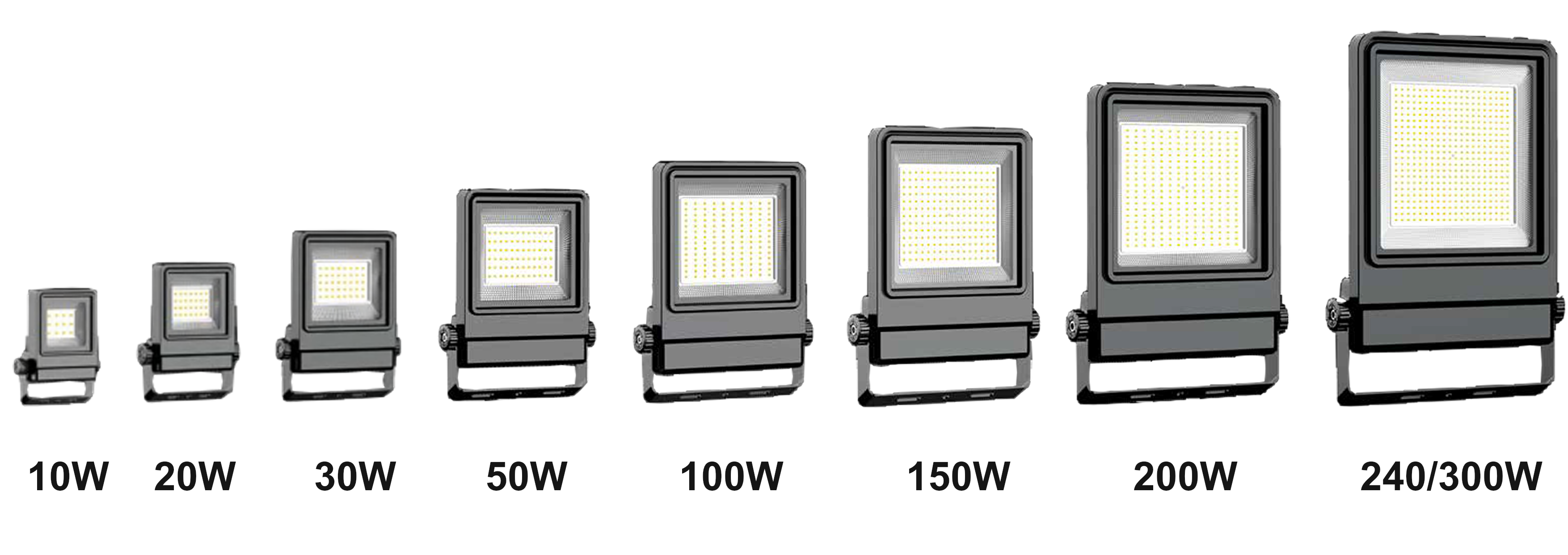

Offered in 10W to 300W Light efficiency up to 150lm/W Optical lighting distribution: 120° Die-casting technology by ADC12, excellent thermal management, reduce the temperature difference and ensure the lumen depreciation Tempered glass, Integrated Breather Valve: Balances The Internal & External Temperature and Humidity Offset bracket design, Racked Angle ±120° adjustable, Allows For Precise Installation Ingress Protection Rating: IP66 Options: 3CCT & 3Power Adjustable Options: PIR Sensor Options: 3CCT & 3Power Adjustable Options: PIR Sensor |
|||
|
|
|||
Model Configuration Table:
|
Model No. |
YXYDF2 -B10W |
YXYDF2 -B20W |
YXYDF2 -B30W |
YXYDF2 -B50W |
YXYDF2 -B100W |
YXYDF2 -B150W |
YXYDF2 -B200W |
YXYDF2 -B250W |
YXYDF2 -B300W |
|
Power |
10W |
20W |
30W |
50W |
100W |
150W |
200W |
250W |
300W |
|
Input Voltage |
AC100-277V;50/60Hz |
||||||||
|
Lumen EFF |
120LM/W(±5%),150LM/W(±5%) |
||||||||
|
LED Brand |
LUMILEDS |
||||||||
|
Driver Brand |
MEANWELL/SOSEN/ISHINELUX |
||||||||
|
CCT |
3000K/4000K/5000K/5700K/6500K/3CCT Adjustable |
||||||||
|
CRI |
Ra>80(70,90 Optional) |
||||||||
|
PF |
0.95 |
||||||||
|
Beam Angle |
120° |
||||||||
|
IP Rating |
IP66 |
||||||||
|
IK Rating |
IK08 |
||||||||
|
Warranty |
5 Years |
||||||||
|
Life Span |
50,000Hrs |
||||||||
|
Working Temperature |
-25℃-+45℃ |
||||||||
|
Dimmension(mm) |
127*127*44 mm |
148*148*44 mm |
201*193*46 mm |
247*237*47 mm |
301*280*55 mm |
358*320*61 mm |
412*366*63 mm |
486*406*69 mm |
486*406*69 mm |
|
Certifcation |
UL/ETL/CQC/CB/CE/ENEC/SAA/FCC/RoHS |
||||||||
Case diagram:
Download：
|
Spec Sheet
|
Brochures
|
Technical Files |
|
Video & Pics |
Installation Instructions |
Certification and Reliable Test Reports
|
YXYDF2-Spec Sheet
