High Power Sports & FloodlightLED FloodlightModel: YXYSW8

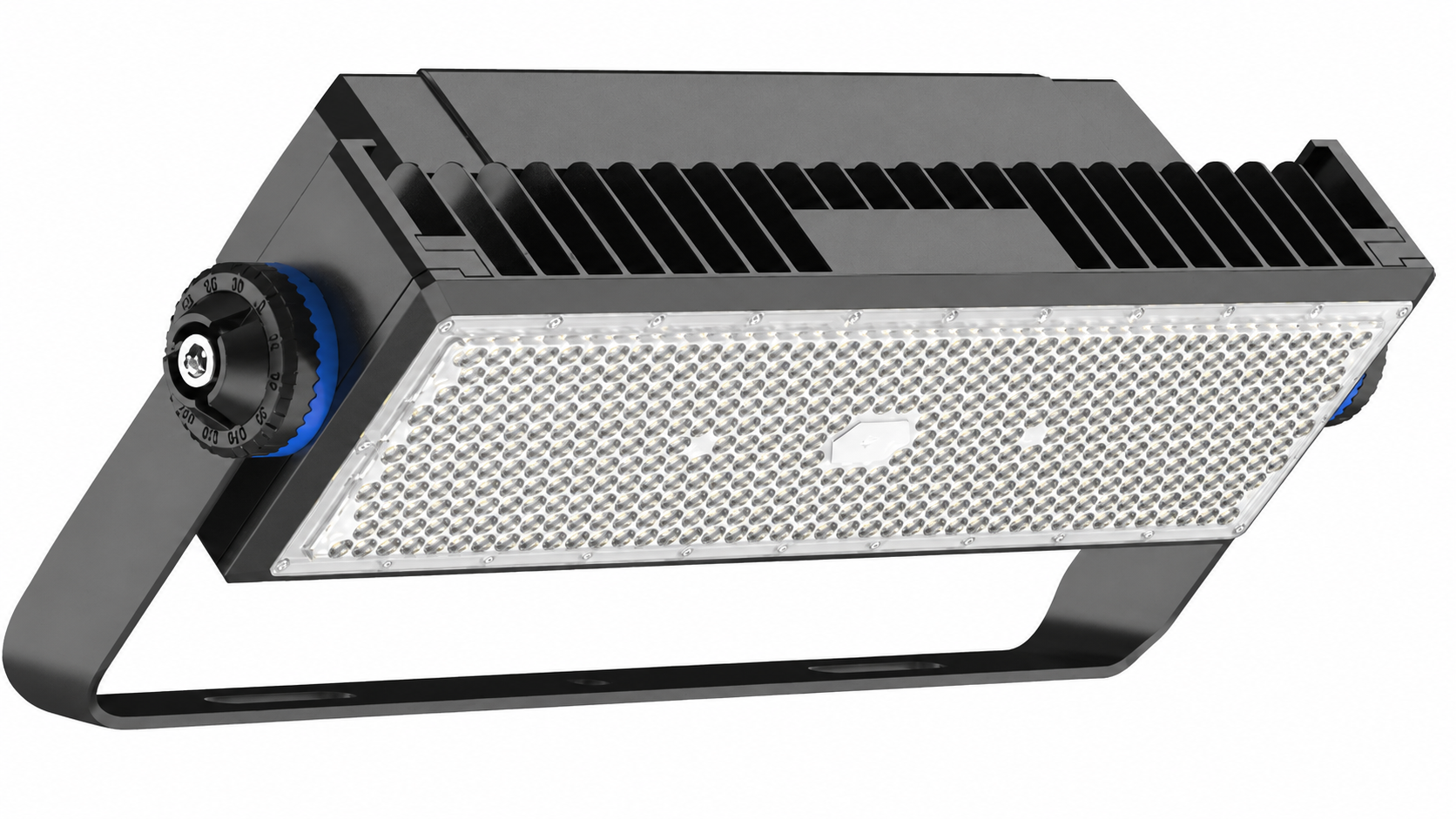

YXYSW8 240-1500W IP66 UL/ETL LED floodlight for stadium and large infrastructure lighting

YXYSW8

240W–1500W IP66 High Power LED Floodlight — UL Listed, CE Certified

The YXYSW8 is a 240W to 1500W IP66 LED floodlight designed for stadium, port, and large-scale infrastructure lighting. It carries UL, ETL, CE, and RoHS certifications. The integrated die-casting heat sink and 4mm U-shape bracket ensure excellent thermal management and structural rigidity, achieving a rated lifetime of 50,000 hours. Available in 3000K to 6500K static white, it supports DALI and DMX control protocols and multiple beam angles for precise optic control.

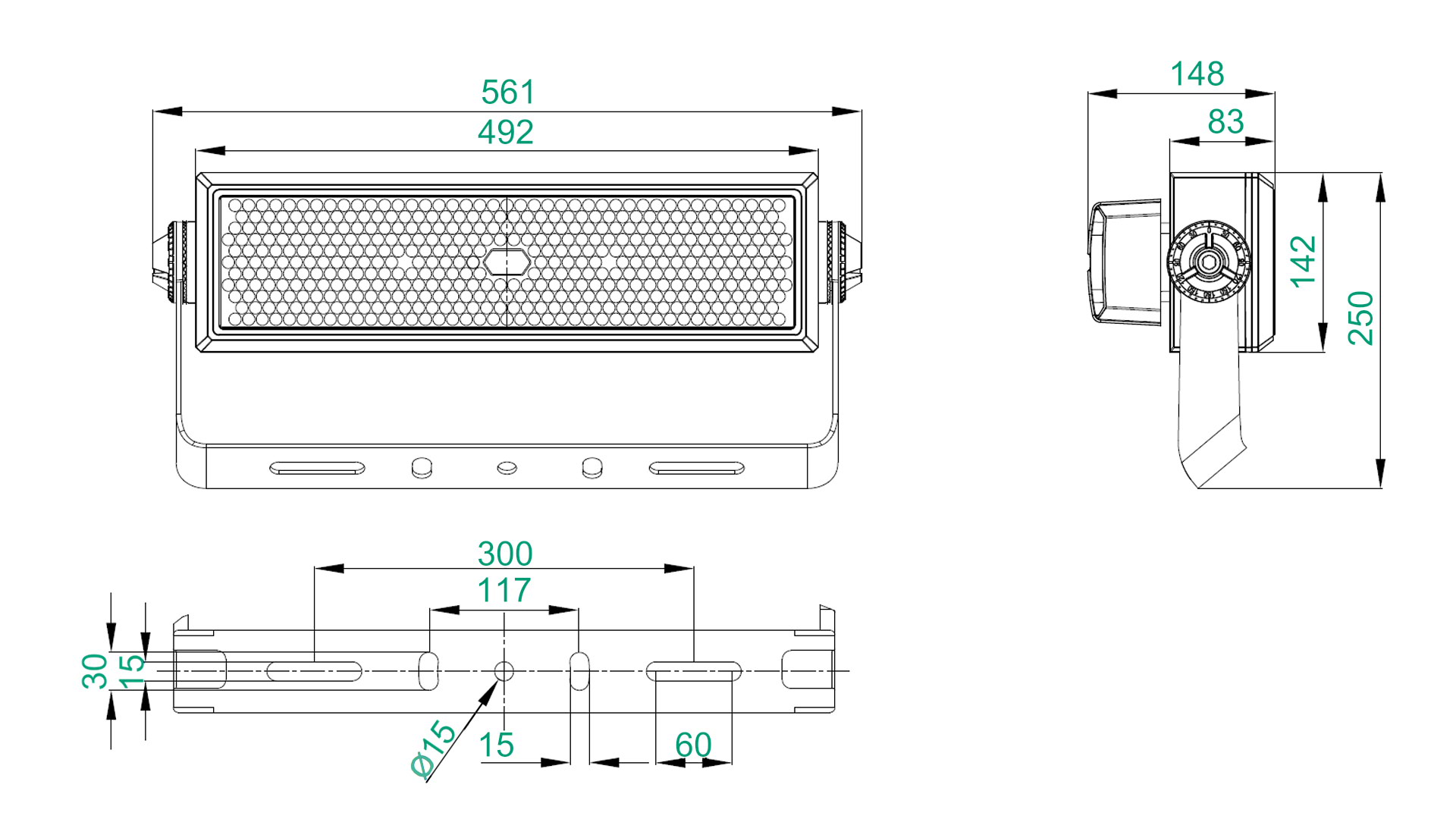

YXYSW8 LED floodlight dimension drawing
IP66Outdoor protection
IK08Impact resistance
ULNorth America compliance
CEEuropean compliance
5-YearWarranty support

Color & Optic

Color Options

3000K
4000K
5000K
5700K
6500K
Static white CCTs available from 3000K to 6500K

Beam Options

10 degree beam angle
10°
15 degree beam angle
15°
25 degree beam angle
25°
45 degree beam angle
45°
60 degree beam angle
60°
90 degree beam angle
90°
Multiple precise optics for various lighting distributions

Product Specifications

Power240W / 300W / 480W / 600W / 720W / 900W / 960W / 1200W / 1500W
LED TypesLUMILEDS / OSRAM
ColorStatic White
Input Voltage100–277V AC
Housing MaterialDie-casting Aluminum
Cover LensPolycarbonate + Tempered glass
Control ModeDALI / DMX
Beam Angle10° / 15° / 25° / 45° / 60° / 90° / Asym 60°
IP RatingIP66
Impact RatingIK08
Size560×250 / 447 / 761 / 918 × 148mm
Lifetime50,000 hrs
Warranty5 years
Operating Temperature−35°C to +50°C

Model Configuration

Model Length Power Color Options Lumen Output Packing Info
YXYSW8-H300W 250mm 240W/300W
White
36,000–45,000 lm
Weight: 7.7 KGS Qty/Ctn: 1 Units/Ctn Carton: 590*805*200mm
YXYSW8-H600W 447mm 480W/600W
White
72,000–90,000 lm
Weight: 14.15 KGS Qty/Ctn: 1 Units/Ctn Carton: 610*525*200mm
YXYSW8-H900W 447mm 720W/900W
White
108,000–135,000 lm
Weight: 20.7 KGS Qty/Ctn: 1 Units/Ctn Carton: 680*610*200mm
YXYSW8-H1200W 761mm 960W/1200W
White
144,000–180,000 lm
Weight: 26.4 KGS Qty/Ctn: 1 Units/Ctn Carton: 840*610*200mm
YXYSW8-H1500W 918mm 1200W/1500W
White
180,000–225,000 lm
Weight: 29.5 KGS Qty/Ctn: 1 Units/Ctn Carton: 995*610*20mm

Lumen output calculated at 150 lm/W. Specific lumen output may vary based on exact CCT and optics configuration. All models are IP66 and carry a 5-year warranty.

Advantages

Die-Casting Heat Sink

Integrated structure delivers excellent thermal management and a compact footprint for high-power demands.

Harsh Environment Ready

Features tempering glass and special corrosion treatment that reaches the WF2 anti-corrosion standard.

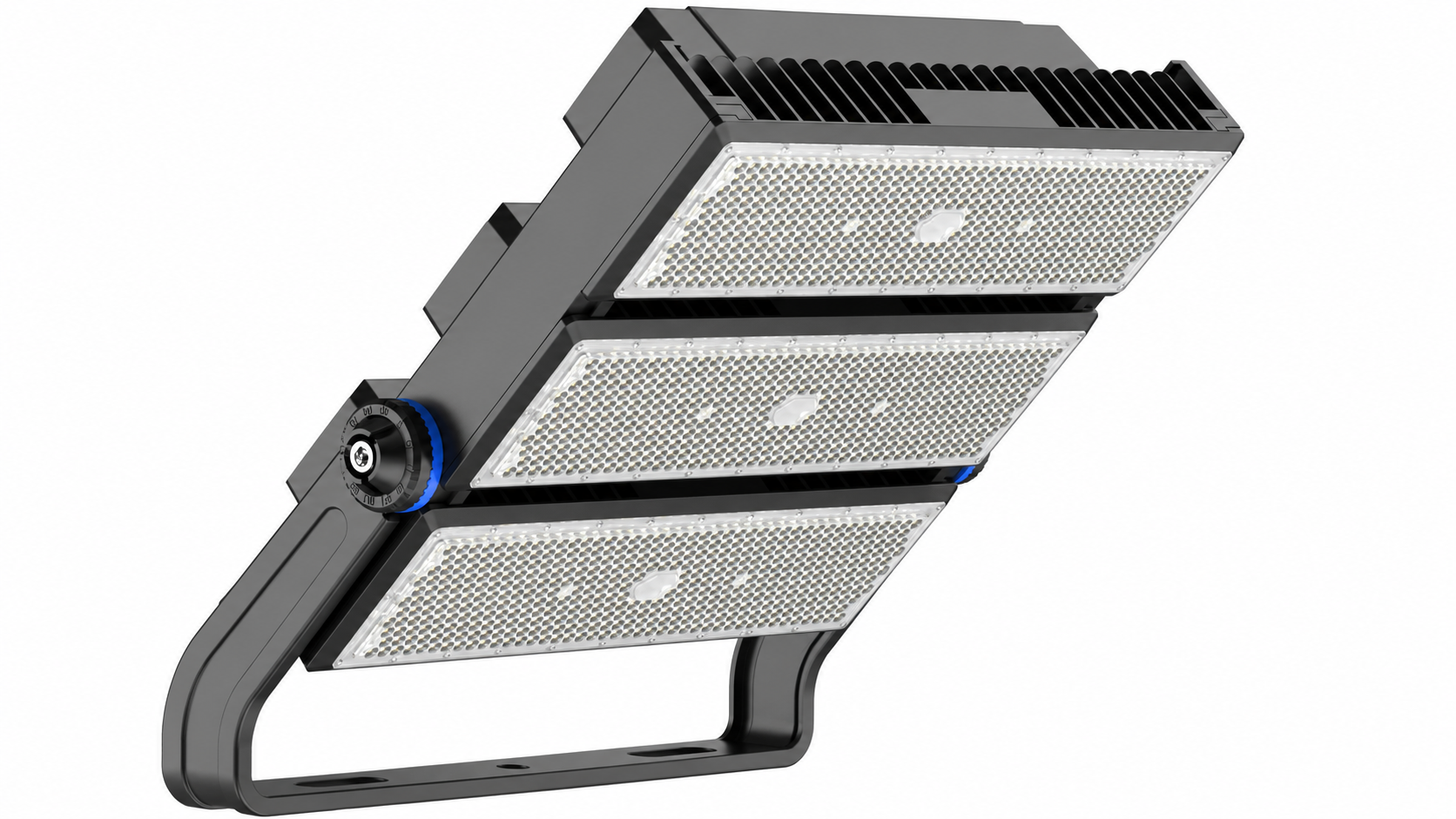

Aiming Device & Spill Shield

Optional accessories allow for precise optical control and aiming while eliminating unwanted light pollution.

Double Surge Protection

Built-in high-quality drivers combined with an extra 10KV SPD protect the fixture against severe voltage fluctuations.

Module Gap Design

Specially engineered structure reduces the wind resistance area while increasing overall heat dissipation performance.

High Efficiency Optics

High strength polycarbonate lenses deliver exceptional light distribution and efficacy up to 150 lm/W.

Impressions

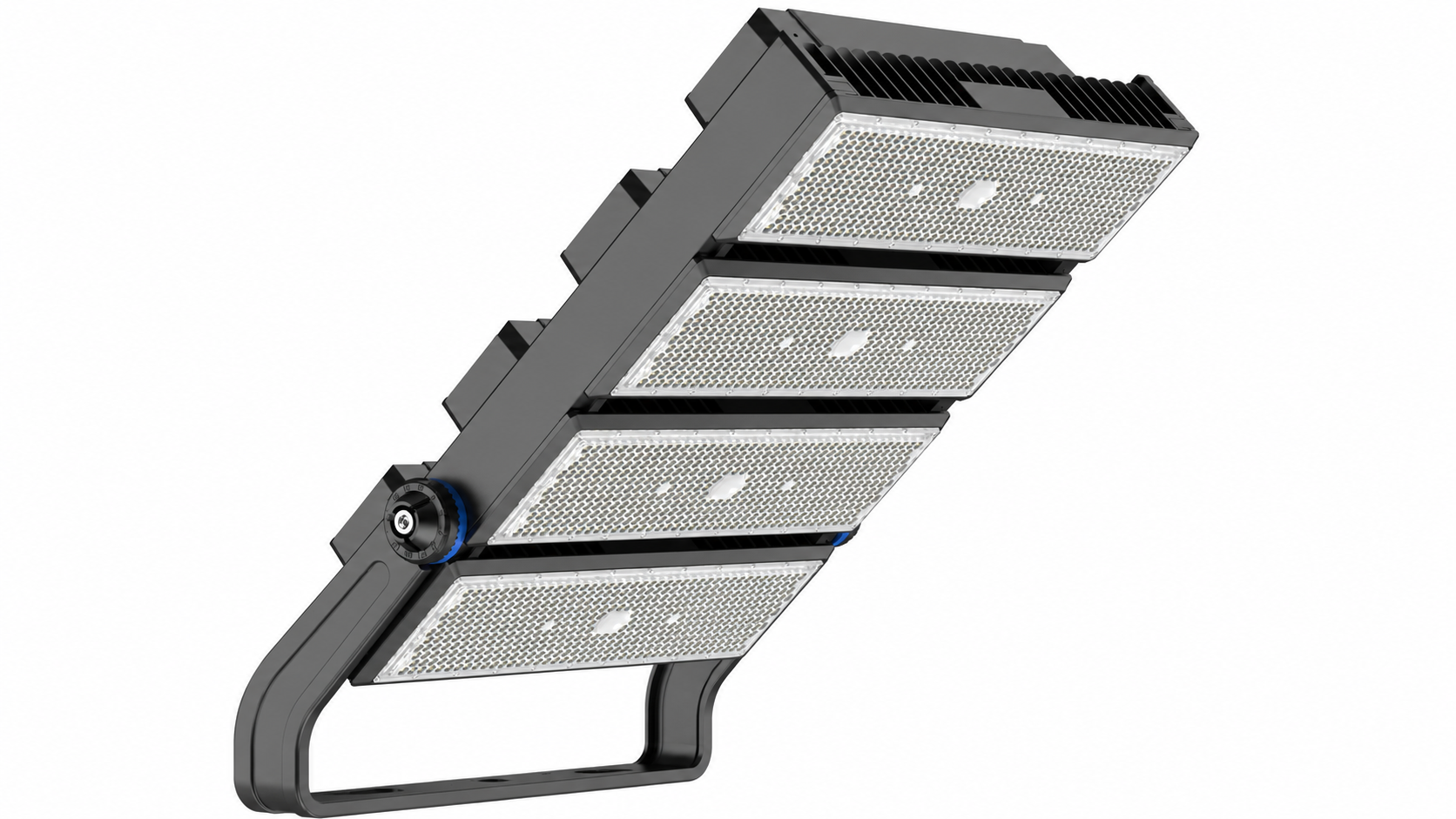

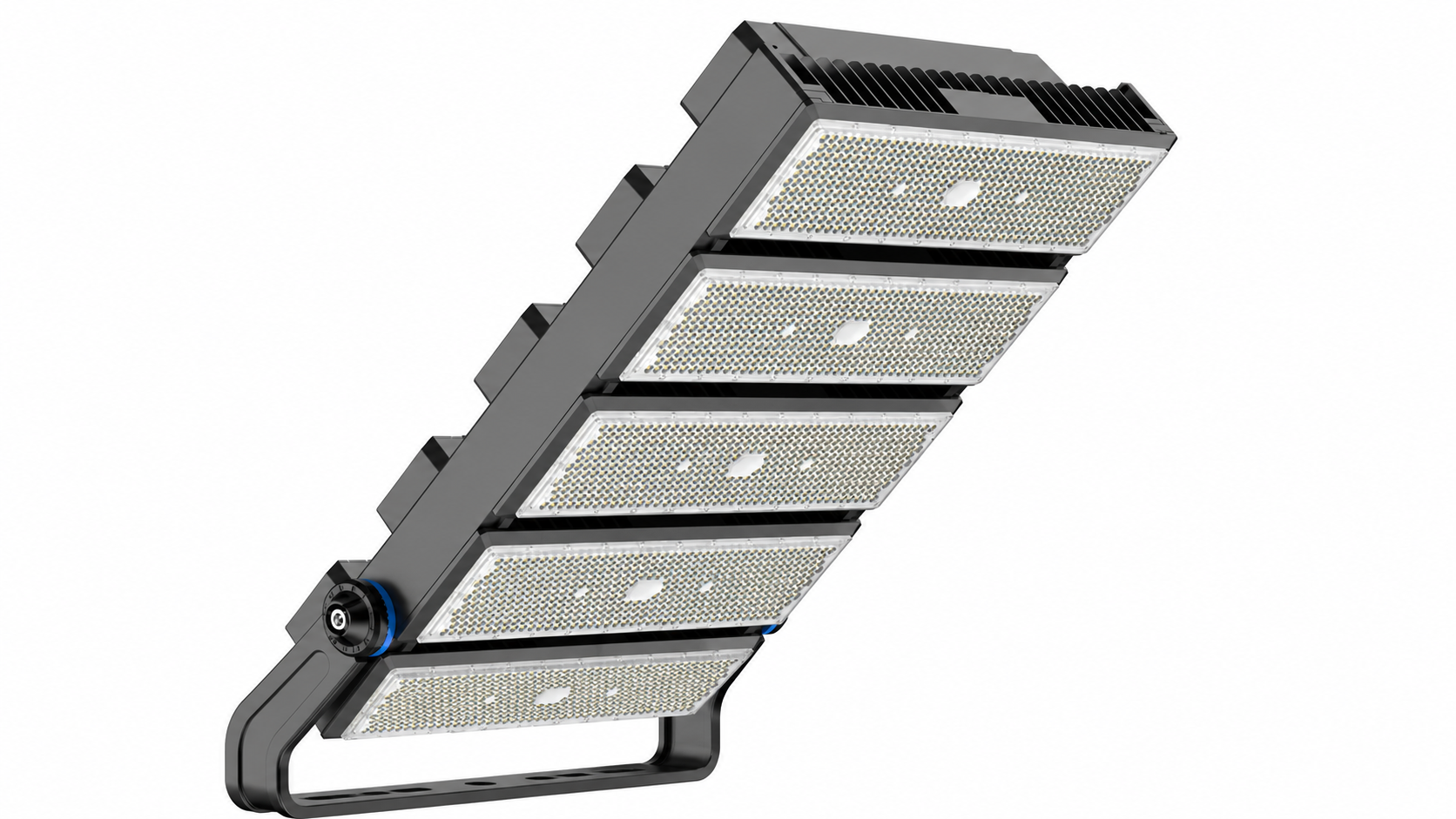

YXYSW8 stadium and high mast lighting effect
YXYSW8 LED floodlight structure illumination
Outdoor high power floodlight impression view

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ULNorth AmericaUL listed for US and Canada project documentation. Meets safety standards for outdoor luminaires.Available with documentation
CEEuropean MarketCertified for European LVD and EMC requirements for outdoor high power luminaires.Available with documentation
RoHSEnvironmental ComplianceRoHS hazardous substance restriction documentation available with product files on request.Available with documentation

Related Projects

Rangers Ballpark stadium lighting project USA by TPK Lighting
Rangers Ballpark

High-performance LED floodlighting system delivering broadcast-quality illumination for professional baseball games.

Sports Lighting

Rangers Ballpark

USA
Kleanthis Vikelidis Stadium sports lighting project Greece by TPK Lighting
Kleanthis Vikelidis Stadium

Advanced LED stadium illumination meeting international broadcasting standards for premier European football matches.

Sports Lighting

Kleanthis Vikelidis Stadium

Thessaloniki, Greece
Smith's Ballpark stadium lighting project by TPK Lighting
Smith's Ballpark

Precision optical LED lighting system minimizing light spill while delivering exceptional on-field visibility for nighttime baseball.

Sports Lighting

Smith's Ballpark

USA

Accessories

Accessories designed to optimize optical control, physical protection, and installation precision.

SP-F310 end cap accessory
Anti-glare Lens / Diffuser
Glare reduction & visual comfort
SP-F310 signal input cable accessory
Wire Guard
Impact protection against sports balls
SP-F310 adapter cable accessory
Junction Box / Surge Protector
Waterproof connection or lightning protection
SP-F310 Y-type cable accessory
Aiming Device / Scope
Precise beam angle alignment
SP-F310 waterproof connector accessory
Visor / Spill Shield
Spill light & pollution control
