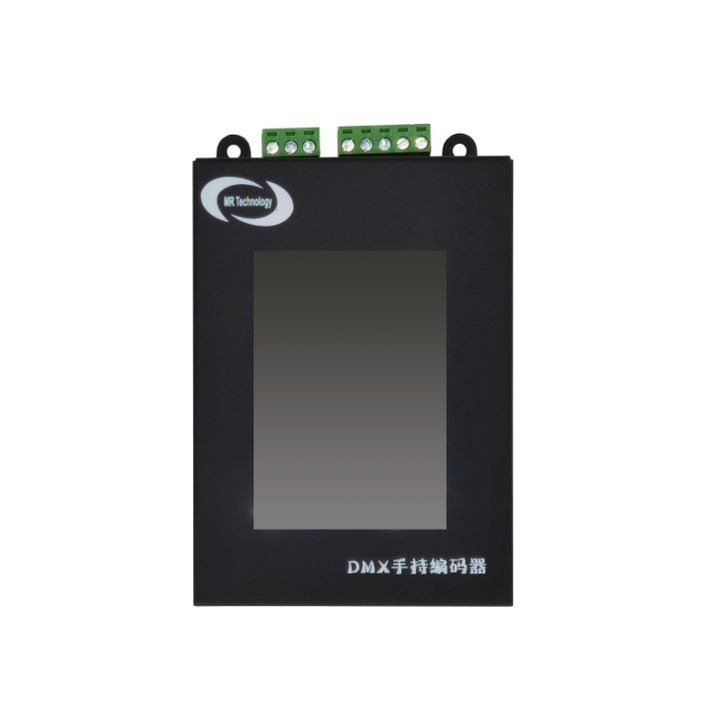

MR-WT35 ·MR-WT35 Device Can Set The Number of Loaded Channels, Baud Rate, PlaybackSpeed, Color Number and Other Parameters; ·You Can Specify The Starting Channel, The on-Load Channel of a Single Chip, and The Lamp Number, and Verify the Address Through Automatic/Manual Test Mode ·The Device Has a Variety of Built-in Test Animation Effects, Such as a Variety of Color Gradient, Automatic/Manual Running pPoint, Overall Gradient and Other Effects;Support Brightness Adjustment, Single Channel Brightness Adjustment Function; ·With an SD Card Slot, Support SD Card to Store Animation Data, and Can Specify a Play Scene, Playback Speed Can be Adjusted;Can Simulate DMX512 Console, for DMX512 Channel 1-512 Channel Arbitrary Send Channel Data, Can be Used as a Simple DMX512 Console;Support Standard RDM Protocol, Can Search RDM Lamps, Static dDetection, Write DXM512 aAddress by UID and Other Functions; |
Product drawing：
 |
 |
 |
|
Model |
MR-WT35 |
|
Size |
L122xW87.4xH41mm |
|
Main body |
Iron (Dusting Process) |
|
output |
5W |
|
Touch screen |
3.5 "Resistive Touch LCD Screen |
|
Power supply mode Power supply input |
Type-C Power Supply and DC Power Supply DC 6.0~24V，Max 2.0A |
Download：
