MADRIX
DISTIRUBTOR-Art-MR
· Supports standard USITT DMX512/1990 protocol.
· Supports 4,8,16 a DMX signal output ports, each port as a separate DMX area (512CH) ·Supports computer online use, multiple use of the maxi-mum control with 1000000 DMX channels
· Audio control optional
|

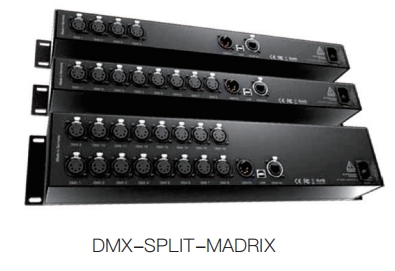

Product drawing：
|
|
|
 |
Model Configuration Table：
|
Mode
|
A4 | A8 | A16 |
| Size |
L76xW483xH44mm
|
L76xW483xH44mm
|
L76xW483xH88mm
|
|
Main body
|
Aluminium
|
Aluminium
|
Aluminium
|
|
Weight
|
1.3kg±5%
|
1.4kg±5%
|
2.0kg±5%
|
|
Input
|
120~240V AC
|
120~240V AC
|
120~240V AC
|
|
Power
|
5W
|
7W | 10W |
|
DMX512(out)
|
4xDMX512 channels
|
8xDMX512 channels
|
16xDMX512 channels
|
|
DMX512(in)
|
1xDMX512 channels
|
1xDMX512 channels
|
1xDMX512 channels
|
|
Connection
|
RJ45 / USB 2.0
|
RJ45 / USB 2.0
|
RJ45 / USB 2.0
|
